Why Your LiFePO4 Battery Shows Zero or Low Voltage (And How to Fix It)

2025-08-08 | Eric

LiFePO4 batteries are known for their safety, longevity, and reliability. But even the best systems can run into issues—and nothing’s more frustrating than discovering your battery or battery pack is showing zero voltage or low voltage.

Whether you're an end-user powering a solar system, RV, or electric vehicle—or a business integrating LiFePO4 batteries into larger systems—this guide covers the most common causes and what you can do about them.

Part 1: Why a Single LiFePO4 Cell May Show Zero or Low Voltage

A single LiFePO4 cell showing zero or abnormally low voltage usually points to internal damage or misuse. Here's what might be going wrong:

1. External Short Circuit or Misuse

If a battery cell has been:

• Overcharged
• Forcefully over-discharged
• Charged in reverse polarity

…it can lead to permanent internal damage, causing the voltage to drop to zero.

2. Overcharging at High Current

Continuously charging at high rates or high current can overheat the battery. This may cause the internal core to expand and create a direct short circuit between the positive and negative poles—effectively killing the cell.

3. Internal Short Circuit or Micro Short

Manufacturing defects or rough handling can cause internal shorts. For example:

• Poor alignment of positive and negative plates
• Contact between electrode materials
• Tiny metal particles inside the cell bridging circuits

Such micro shorts often go unnoticed until the voltage drops dramatically.

Quick Tip: Always use a compatible BMS (Battery Management System) and a charger specifically designed for LiFePO4 chemistry. This helps prevent misuse and maintains long-term health.

Part 2: Why an Entire LiFePO4 Battery Pack May Show Zero or Low Voltage

Sometimes the issue isn’t just a single cell—it’s the whole battery pack. Here are the usual suspects:

1. Faulty or Dead Cell Inside the Pack

Even one dead cell can drag down the overall performance of the battery pack. If a cell hits zero volts, the pack might not function or charge properly.

2. Poor Plug or Connector Contact

Loose, broken, or corroded plugs can lead to open circuits or intermittent contact, resulting in a zero-voltage reading—even if the internal cells are fine.

3. Broken Internal Connections or Cold Soldering

If wires, leads, or solder joints between cells or BMS components are loose or damaged, they can interrupt current flow, leading to false readings or total failure.

4. Incorrect Internal Wiring

During assembly, a misconnected tab or misplaced wire can cause serious voltage issues, including partial or total failure of the pack.

5. BMS or Component Failure

A damaged BMS or electronic component inside the pack may block charging or discharging—even if all cells are functioning.

Pro Insight: Regular visual inspections and voltage readings per cell can help catch these problems before they escalate. For businesses, implementing routine quality checks during production is crucial.

Part 3: Why Your LiFePO4 Battery or Pack Won’t Charge

Your battery appears lifeless, and no matter how long you leave it plugged in, nothing changes. What’s going on?

1. Zero-Voltage Cell Present

If even one cell in the pack is at or near 0V, most chargers and BMS systems will refuse to initiate charging for safety reasons.

2. Incorrect Wiring or Protection Circuit Failure

Improper connection of BMS wires or a faulty protection circuit can shut down the entire battery pack, making it appear dead.

3. Charger Failure

Sometimes it’s not the battery at all. The charger may be defective or outputting no current, especially if it’s not designed for LiFePO4 batteries.

4. Extreme Temperature Conditions

LiFePO4 batteries are sensitive to temperature. Charging at:

• Below 0°C (32°F)
• Above 55°C (131°F)

…can severely reduce charging efficiency—or prevent charging entirely. Some smart BMS setups will even block charging in unsafe temperature conditions.

Solution: Use a charger with a temperature sensor or choose batteries with low-temp charging protection if your environment varies widely.

Final Troubleshooting Checklist

Before replacing your battery or pack, check the following:

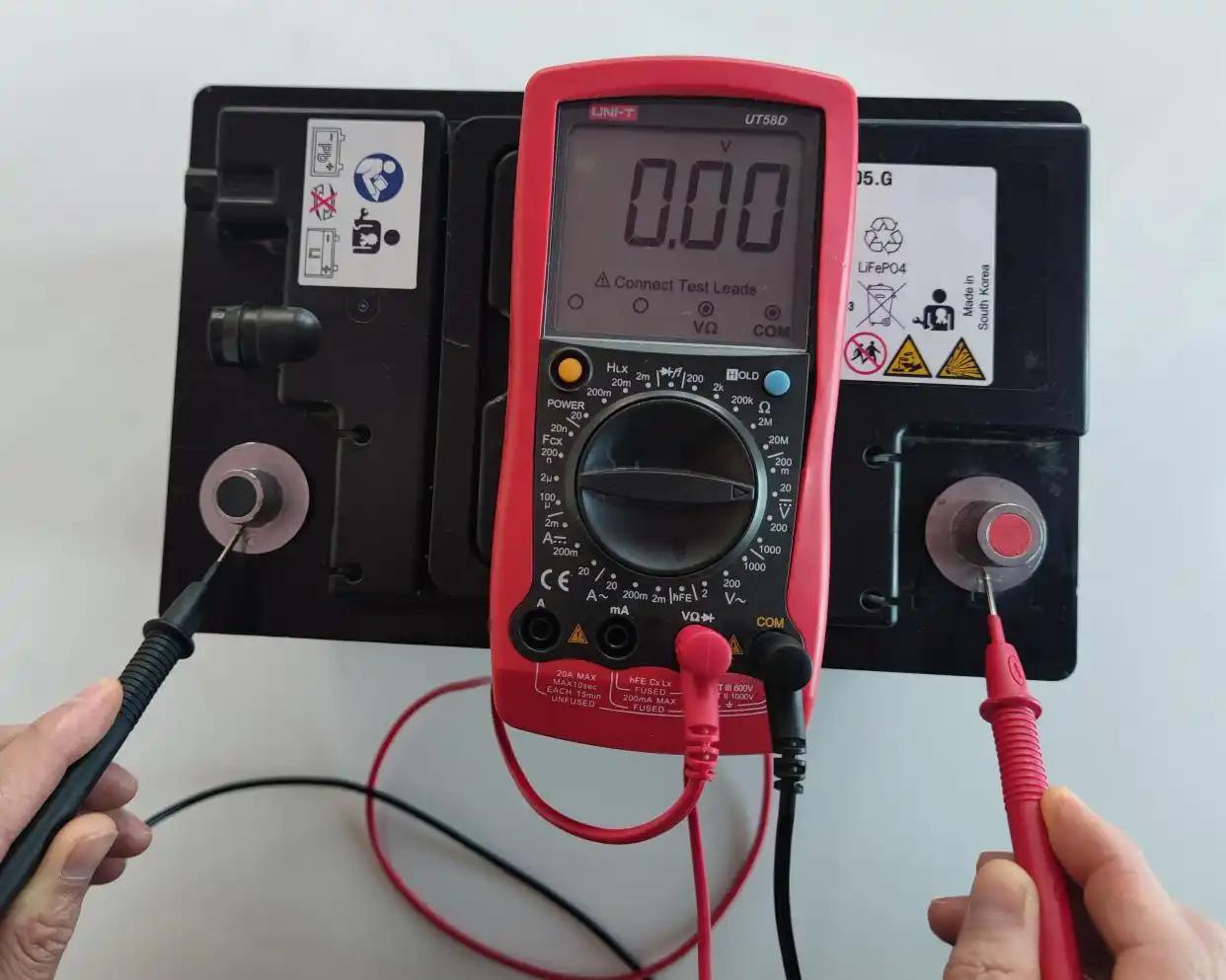

• ✅ Use a multimeter to measure individual cell voltage
• ✅ Inspect plug connections and solder joints
• ✅ Test your charger’s output with another battery
• ✅ Ensure the ambient temperature is within a safe range
• ✅ If available, check BMS LED indicators or error codes

If none of these steps resolve the issue, contact your battery supplier or a certified technician for diagnosis.
