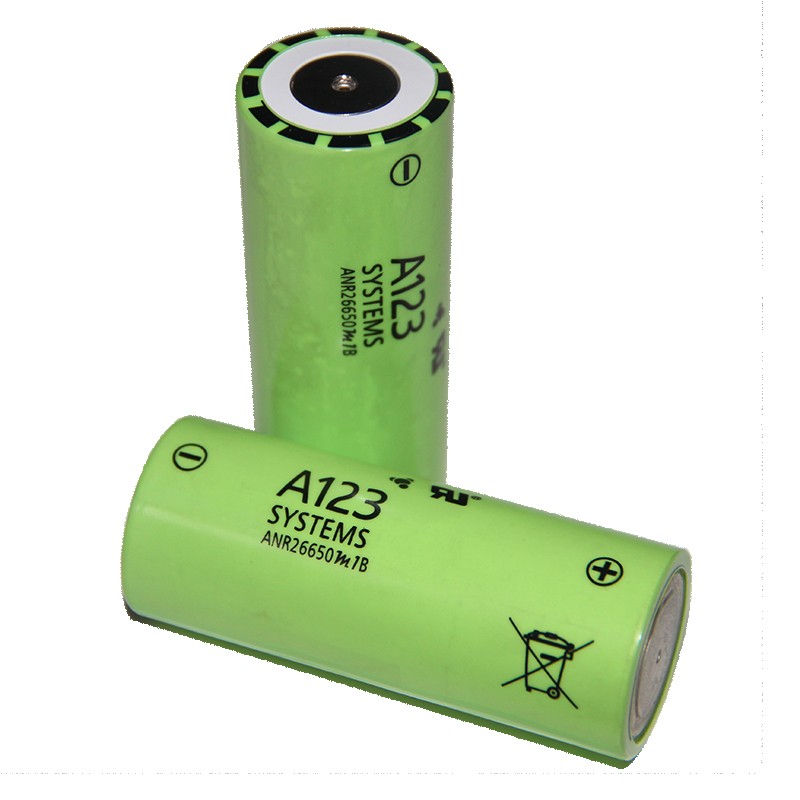

A123 ANR26650M1B 26650 LiFePO4 3.3V 2500mah Battery Cell
Product Details:
Place of Origin: China
Brand Name: A123
Certification: CE
Model Number: 26650
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 2.5Ah Nominal Voltage: 3.3V
- Internal Impedence: 6mΩ Operating Voltage: /
- Dimension: φ26*65mm Battery Weight: 76g
Product Description
The ANR26650M1B is the next generation of A123 Systems’ pioneering 26650 cylindrical cell, now with greater power and energy density and lower impedance. This versatile lithium ion cell is suitable for a wide variety of applications and system designs. Proven performance in the toughest conditions, combining durability, reliability, and safety, the ANR26650 cell offers an excellent combination of price-performance.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- · A123's patented Ultraphosphate® lithium ion chemistry
- · Excellent abuse tolerance and superior cycle life
- · High usable energy over a wide state of charge (SOC) range
- · Excellent high pulse current charge/discharge capability
- · High power over 2,600 W/kg
Specification
| Item | Parameter |
|---|---|
| Cell Dimensions | φ26*65mm |
| Cell Weight | 76g |
| Cell Capacity(nominal/minimum) (0.5C Rate) | 2.5/2.4Ah |
| Voltage(nominal) | 3.3V |
| Internal Impedance (1kHz AC typical) | 6mΩ |
| Power | 2600W/kg |
| Recommended Standard Charge Method | 2.5A to 3.6V CCCV, 60 min |
| Recommended Fast Charge Method to 80% SOC | 10A to 3.6V CC, 12 min |
| Maximum Continuous Discharge | 50A |
| Maximum Pulse Discharge (10 seconds) | 120A |
| Cycle Life at 20A Discharge, 100% DOD | ＞1000 cycles |
| Operating Temperature | -30℃ to 55℃ |
| Storage Temperature | -40℃ to 60℃ |

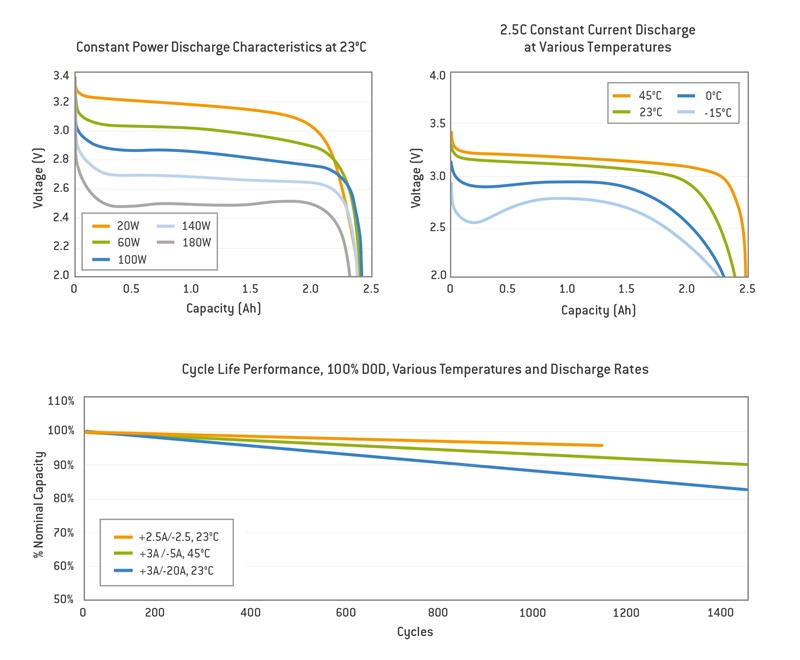

Electrical Performance Diagram
Application Scenarios
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
