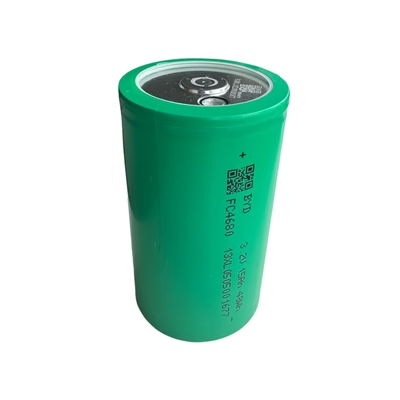

BYD 4680 3.2V 15Ah Rechargeable Cylindrical LiFePO4 Battery cells
Product Details:
Place of Origin: China
Brand Name: BYD
Certification: CE
Model Number: FC4680
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 15Ah Nominal Voltage: 3.2V
- Nominal Cycles: 4000 Cycles Charge/Discharge: 0.5C/0.5C
- Dimension: 46.3±0.25mm * 80.2±0.3mm Battery Weight: 335g
Product Description
The BYD 4680 15Ah LiFePO4 cells deliver dependable performance with advanced safety features and strong durability. Designed for long life, they maintain consistent energy output across numerous charge cycles and support high discharge rates. Their compact size and eco-friendly composition make them ideal for a wide range of applications, from residential energy storage to electric vehicles—offering a reliable and sustainable energy solution.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Standardized
- 4680 industry-standard size, which facilitates standardized packassembly.
- Incorporate innovative Laser Cleaning technology and central-tabsdesign to reduce internal resistance
High Safety
- Passed the tests of Fire Burning, Nail Penatration, and Over-charging.
- No severe chemical reactions such as fire or explosion appeared duringThermal Runaway Test
High Safety
- 6000 times at Room Temperature(25℃,0.5/0.5C,70% retention rate)
- 2000 times at High Temperature(45℃,0.510.5C,70% retention rate)
- 1. Significantly increased battery power (6 times that of the 21700 battery), reduced battery costs, optimized heat dissipation performance, production efficiency, and charging speed, and further improved energy density and cycle performance;
- 2. The design of non-polar ears (full-polar ears) greatly shortens the distance of electronic movement, reduces internal battery resistance, and significantly enhances the battery's charging and discharging capabilities.
Specification
| Item | Specification | Remark |
|---|---|---|
| Typical Capacity | 15.3Ah | 0.2C Rate Discharge Capacity |
| Minimum Capacity | 15Ah | 0.2C Rate Discharge Capacity |
| Nominal Voltage | 3.2V | |
| Internal Impedance | ≤8mΩ | By AC 1kHz |
| Cell Weight | 335g | |
| Dimensions | 46.3 ±0.25mm x 80.2 ±0.3mm | |
| End of Charge Voltage | 3.65V | |
| End of Discharge Voltage | 2.0V | |
| Standard Charge Current | 7.5A(0.5C) | |
| Standard Charging Time | 150min | |
| Maximum Charging Current | 15A(1C) | |
| Standard Discharge Current | 3A(0.2C) | |
| Max. Discharge Current (Continuous) |
15A(1C) | |
| Cycle life | ≥4000Cycles | 0.5C Charge/0.5C Discharge ,70% DOD |
| Operating Temperature | 0~45°C | Charging |
| -20~60°C | Discharging | |
| Storage Temperature For Shipping Cell |
< 35°C | Recommended＜23°C for Long Term Storage |
Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
