BYD Blade Cell C15FKZD 3.2V 335Ah LiFePO4 Battery Cell
Product Details:
Place of Origin: China
Brand Name: BYD
Certification: CE
Model Number: C15FKZD
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 335Ah Nominal Voltage: 3.2V
- Internal Impedence: / Operating Voltage: 2.0~3.8V
- Dimension: 416.0*145.5*57.5mm Battery Weight: 6.6±0.2 Kg
Product Description
The Blade battery is a keystone development from BYD. Developed over several years, the Blade battery is a Lithium Iron Phosphate (LFP) battery but because of its design is stronger, longer lasting, stores more power and offers greater range while delivering a higher level of safety than conventional designs. Each cell resembles a sword blade with positive and negative terminals at each end.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- · Innovative structure, good thermal stability, higher safety performance than the traditional battery; in the case of high temperature, overcharge, extrusion, acupuncture, etc., the probability of hot cell is reduced, effectively improving safety.
- · The energy density per unit volume is one-third higher than that of traditional batteries, which brings better spatial performance for new energy;
- · Light battery weight, corresponding to overcoming the weight consumption of energy reduction, improves battery life;
- · Material cost performance ratio advantage is obvious.
Specification
| Items | Parameters |
|---|---|
| Product Material System | LiFePO4+Graphite |
| Nominal Voltage | 3.2V, 25℃，0.5C，BOL |
| Nominal Capacity | 335Ah, 25℃, 0.5C, 2.0~3.80V, Fresh cell |
| Rated energy | 1072Wh |
| Standard charging protocol | CC |
| Standard charging current | 170A, 23°C |
| Max. Continuous Charging Current | 335A, 23°C |
| Charging cutoff voltage | 3.8V |
| Discharging protocol | CC |
| Discharging cutoff voltage | 2.0V |
| Standard discharging current | 170A, 23°C |
| Max. Continuous discharging current | 335A, 23°C |
| Shipping OCV | 25%~60% |
| Cell Dimensions | 416.0mm*145.5mm*57.5mm |
| Cell weight | 6.6±0.2 Kg |
| Charging ambient temperature | 0~+50℃ |
| Discharging ambient temperature | -20~+55℃ |
| Short-term storage ambient temperature | -20~+50℃, <3months, 20~60% SOC |
| Long-term storage ambient temperature | -20~+50℃, <1 year, 30~60% SOC |
| Storage humidity | 5%~95% |
| Altitude requirement | ≤4000m |

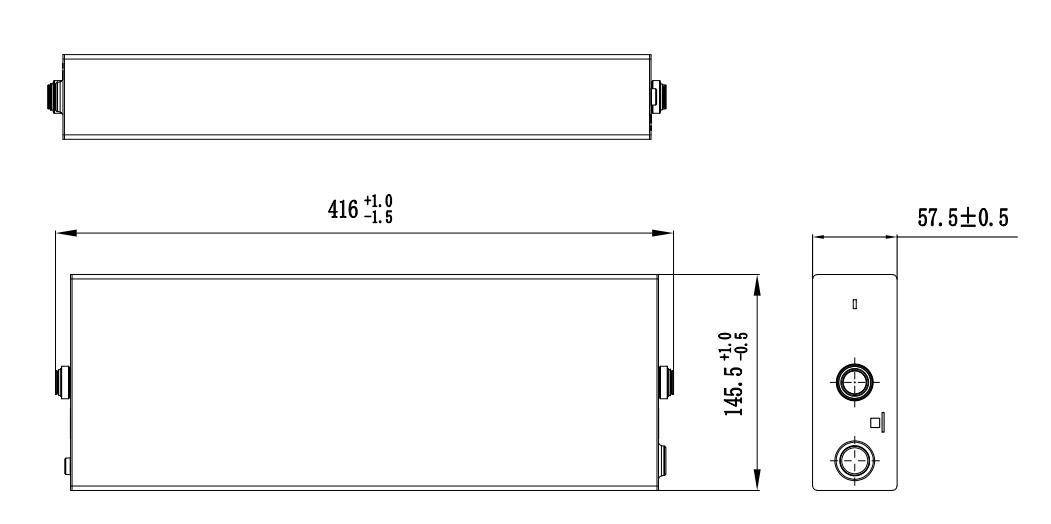

Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
