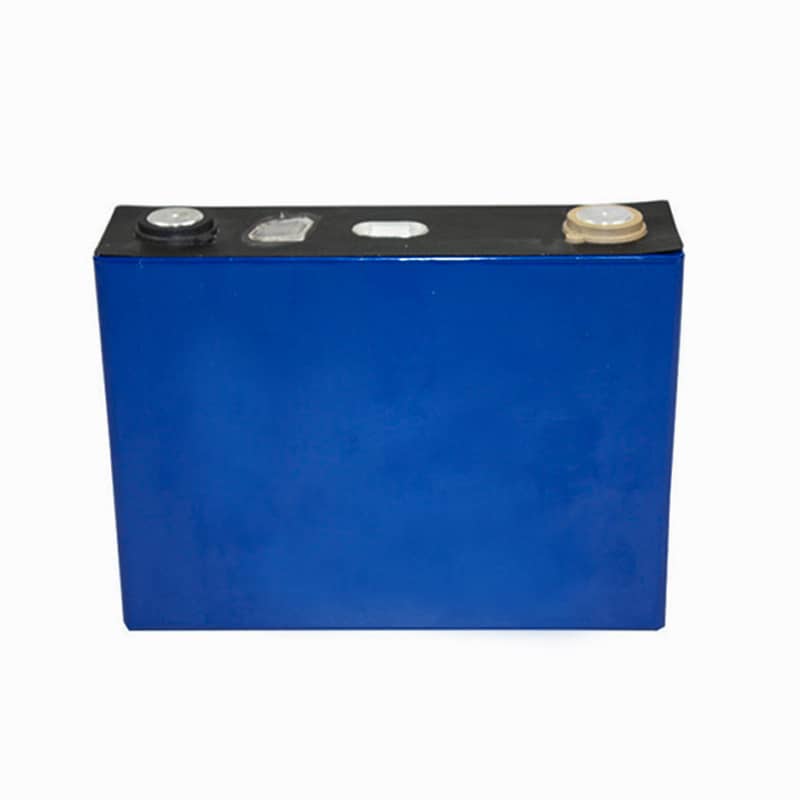

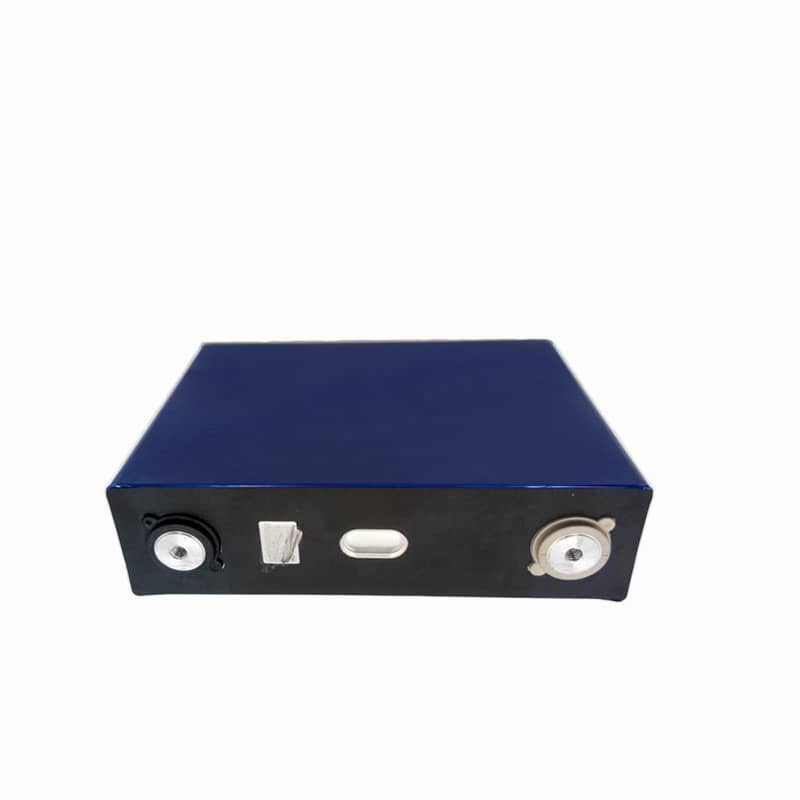

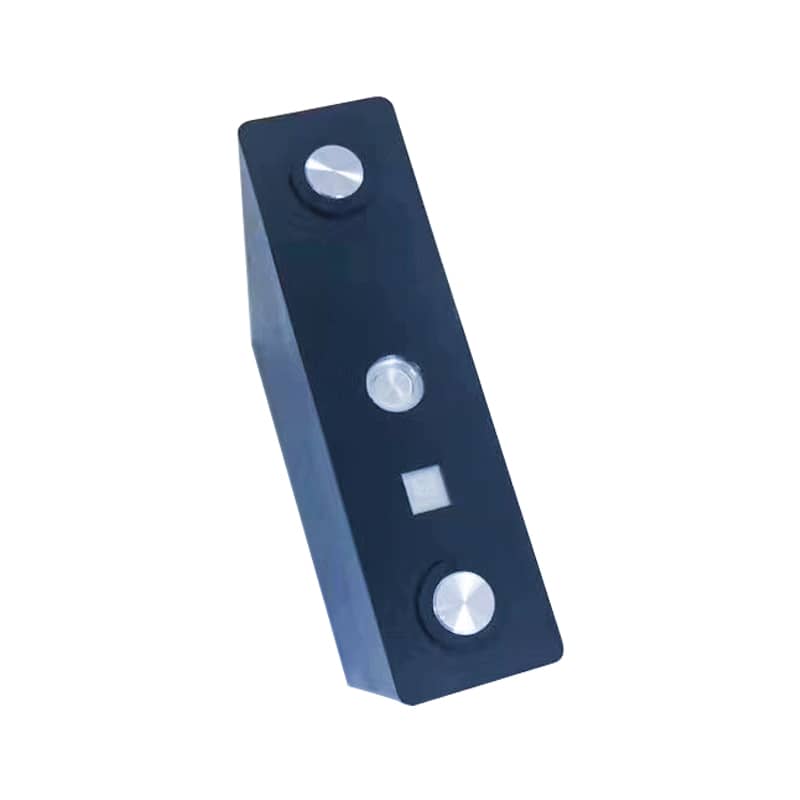

CALB LiFePO4 3.2V 176Ah Battery Cell L173F176
Product Details:
Place of Origin: China
Brand Name: CALB
Certification: CE
Model Number: L173F176
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 176Ah Nominal Voltage: 3.2V
- Internal Impedence: 0.1~0.3mΩ Operating Voltage: 2.5~3.65V
- Dimension: 173.9*53.7*207mm Battery Weight: 3.9±0.30kg
Product Description
100% brand new, grade-A CALB LiFePO4 3.2V 176Ah Battery Cell L173F176 with a complete QR code, offers a long cycle life, high energy density, and a wide operating temperature range, for E-bike, Golf cart, Solar street light, Forklift, UPS, yacht, AGV (Automated Guided Vehicle), RV( Recreational Vehicle), Electric vehicle, Energy storage system(ESS) for wind and solar power, Household storage system and etc.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- · Qualified for RoHS & CCC winth high safely
- · More than 3000 cycles under the designed working condition
- · Anti-explosion safely valve applied
- · Ceramic membrane technology applied to enhance safety
- · High energy density:144wh/kg
- · High charge/discharge rates
Specification
| Items | Parameter |
|---|---|
| Nominal Capacity | 176Ah |
| Minimal Capacity | 176Ah |
| Work Voltage | 2.5~3.65V |
| Internal Resistance (Ac. 1kHz) | 0.1~0.3mΩ |
| Charging Time | Standard Charge: ~4h |
| Fast Charge: ~1h | |
| Operating Temperature | Charging: -5~55°C |
| Discharging: -30~55°C | |
| Maximum Constant Discharging Current | 176A |
| Maximum Pulse Discharging Current（Long Pulse） | 352A(3Min) |
| Maximum Pulse Discharging Current（Short Pulse） | 528A(30S) |
| Weight | 3.9±0.30kg |
| Shell Material | Aluminium |
| Dimension (L*W*H) | 173.9*53.7*207mm |

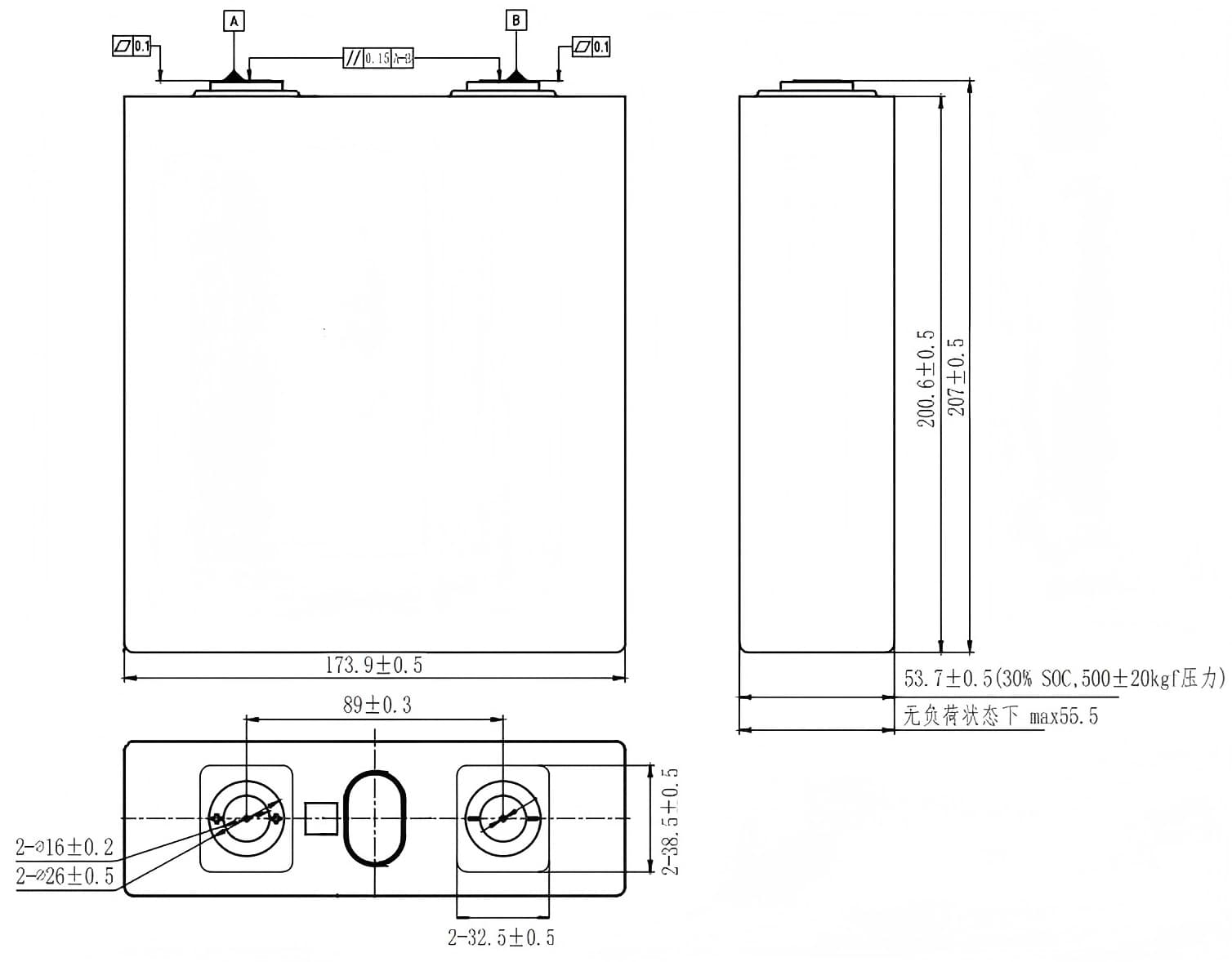

Dimension and Details

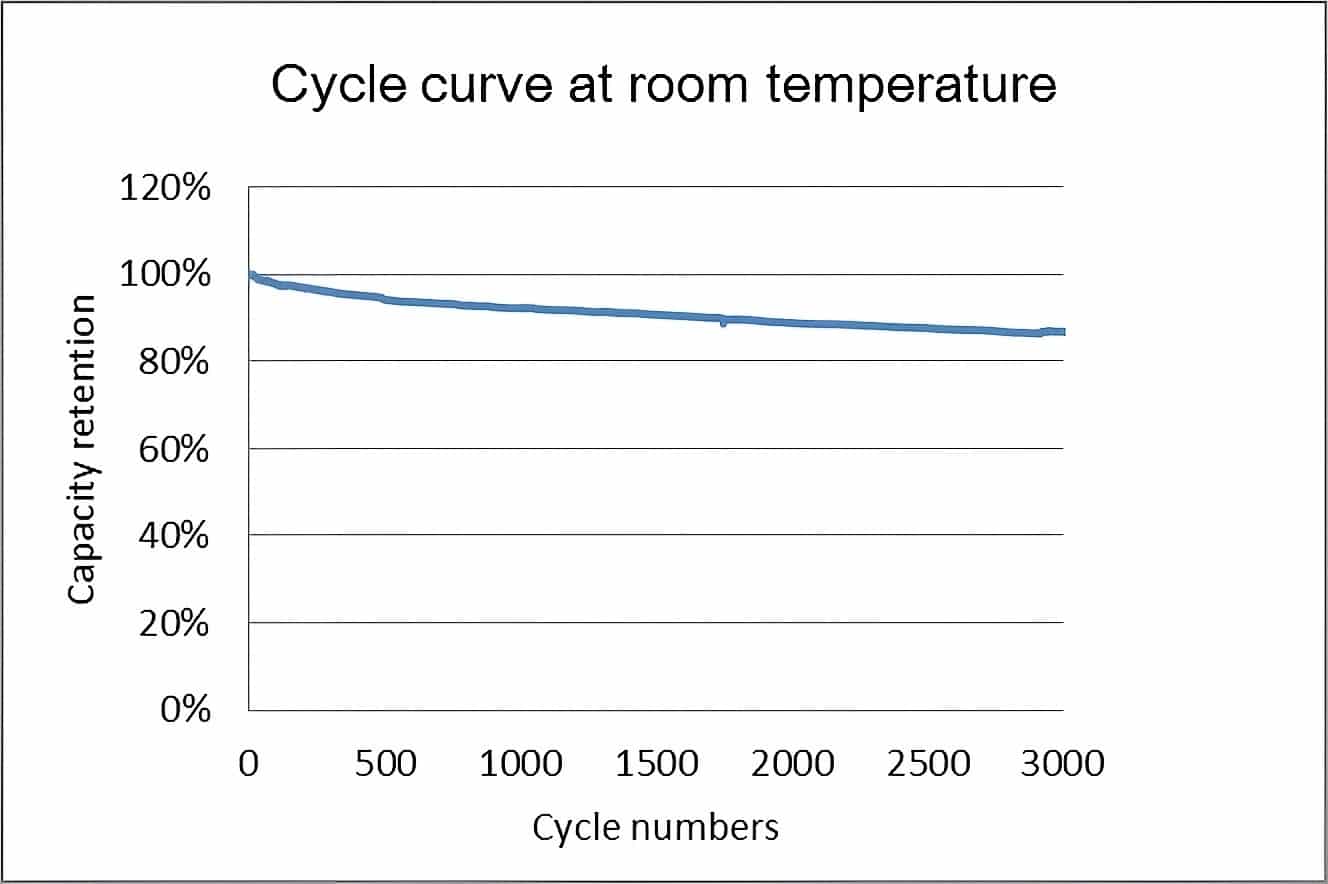

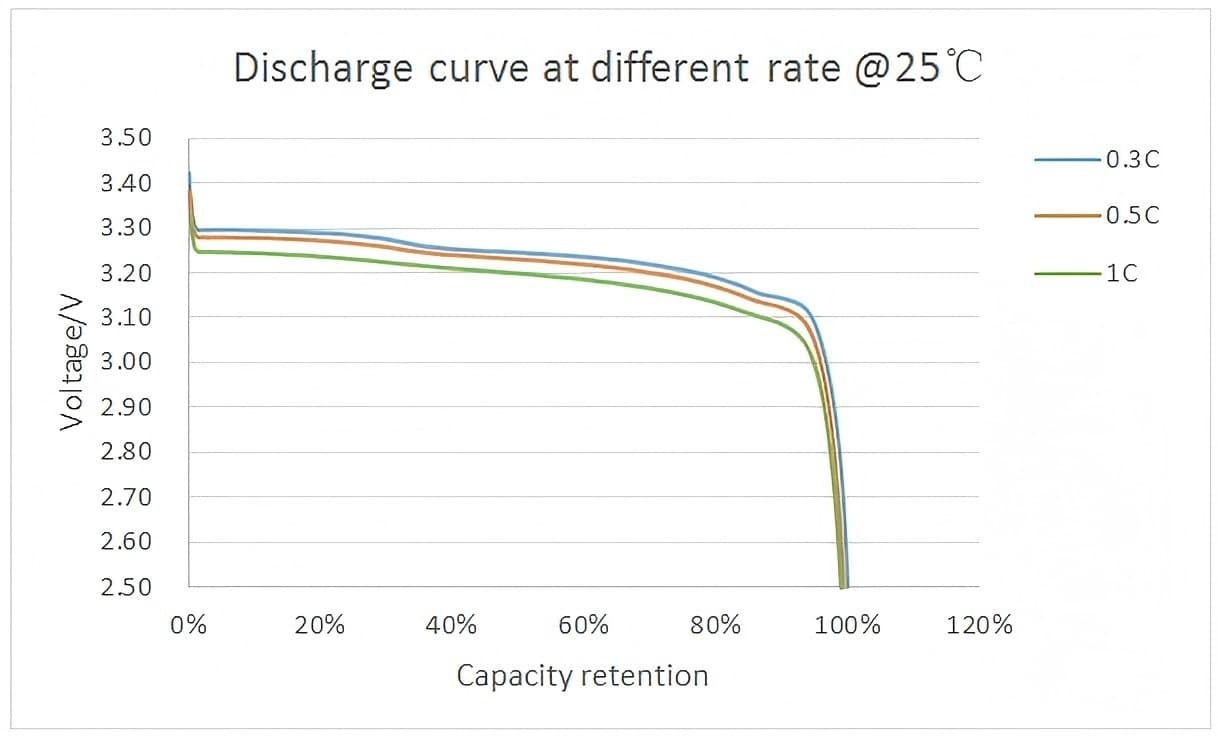

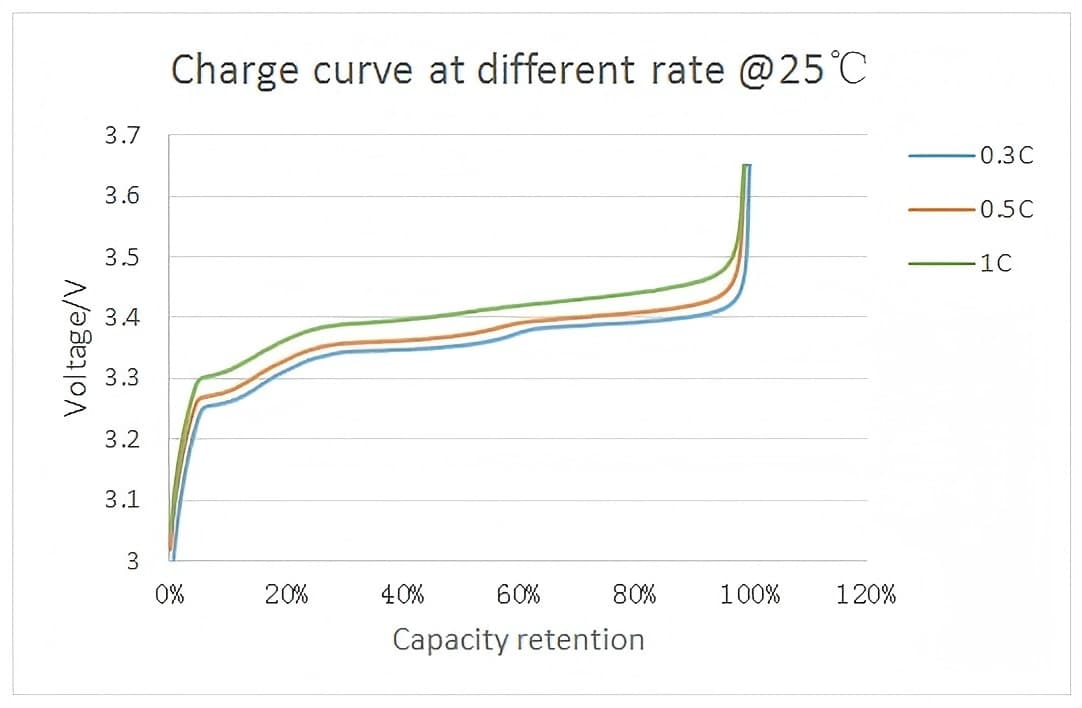

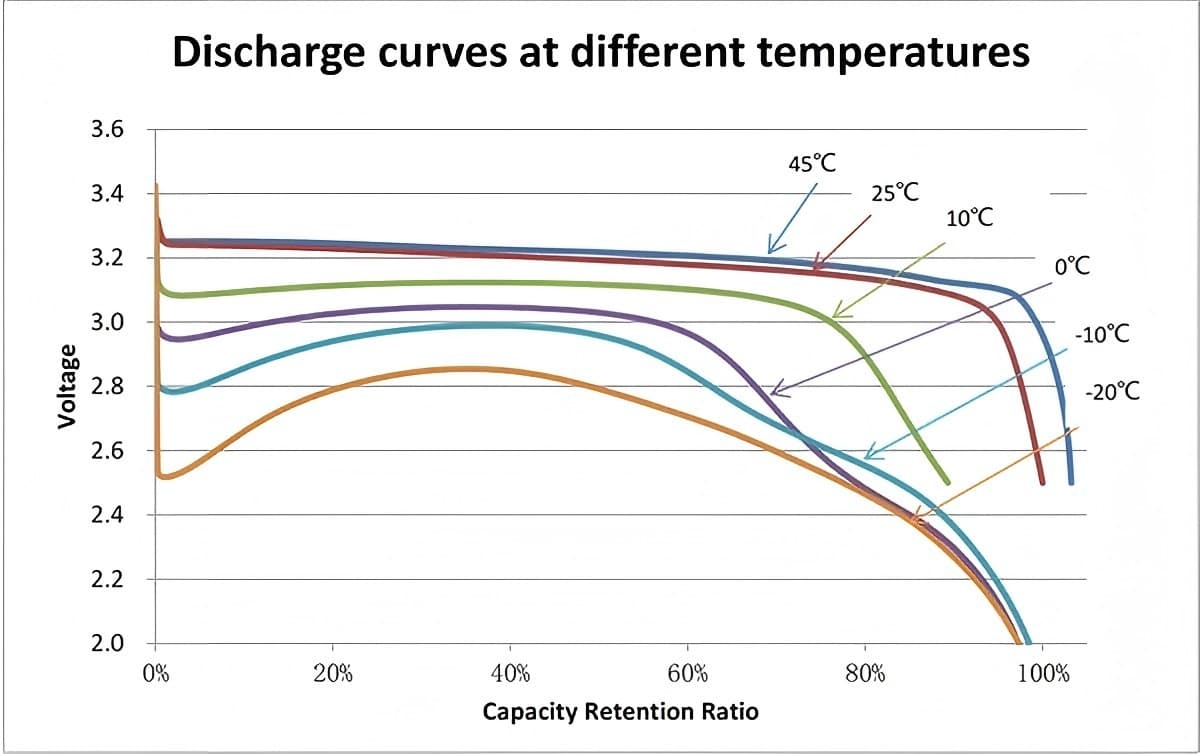

Electrical Performance Diagram
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
