CATL 12V 202Ah & 271Ah LiFePO4 Battery Module
Product Details:
Place of Origin: China
Brand Name: CATL
Certification: CE
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 202Ah / 271Ah Nominal Voltage: 12.88V
- Connection Method: 1P4S Operating Voltage: 10V~14.6V
- Dimension: L266*W178*H237mm / L337*W178*H237mm Battery Weight: 19.70Kg / 25.2 Kg
Product Description

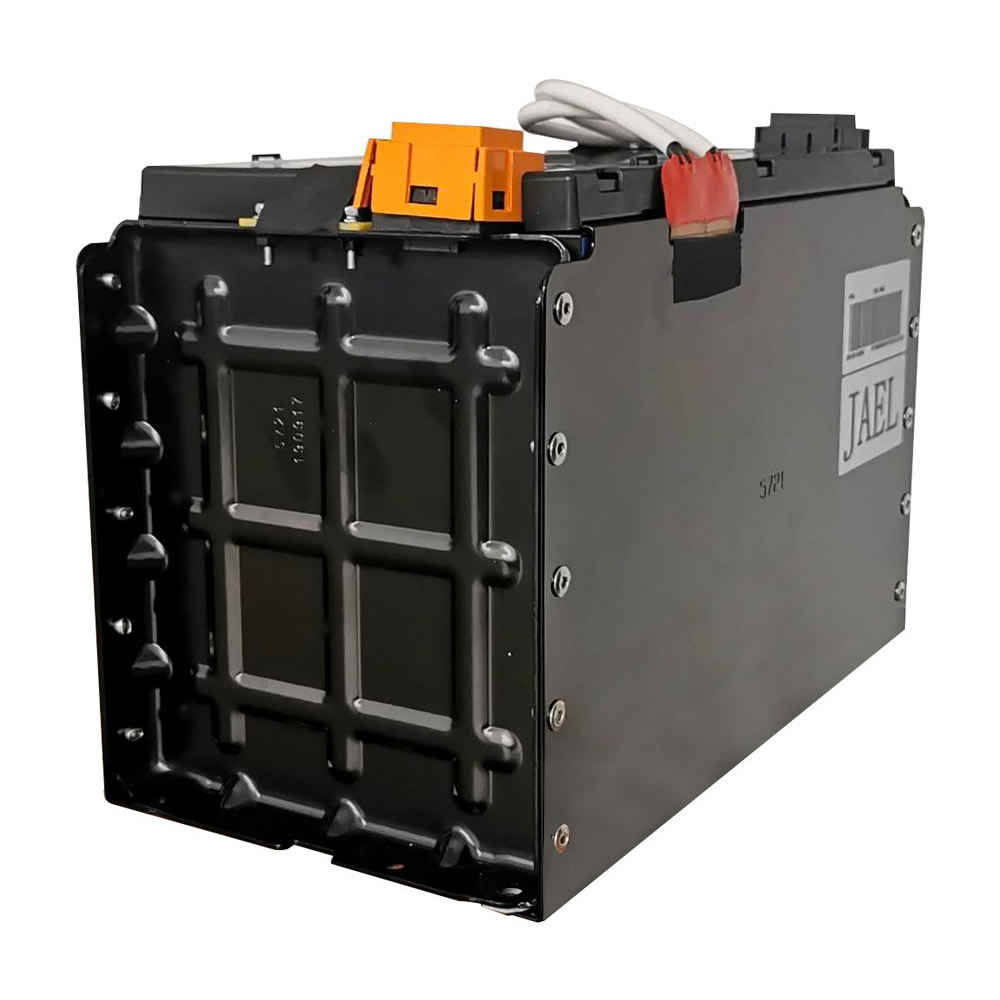

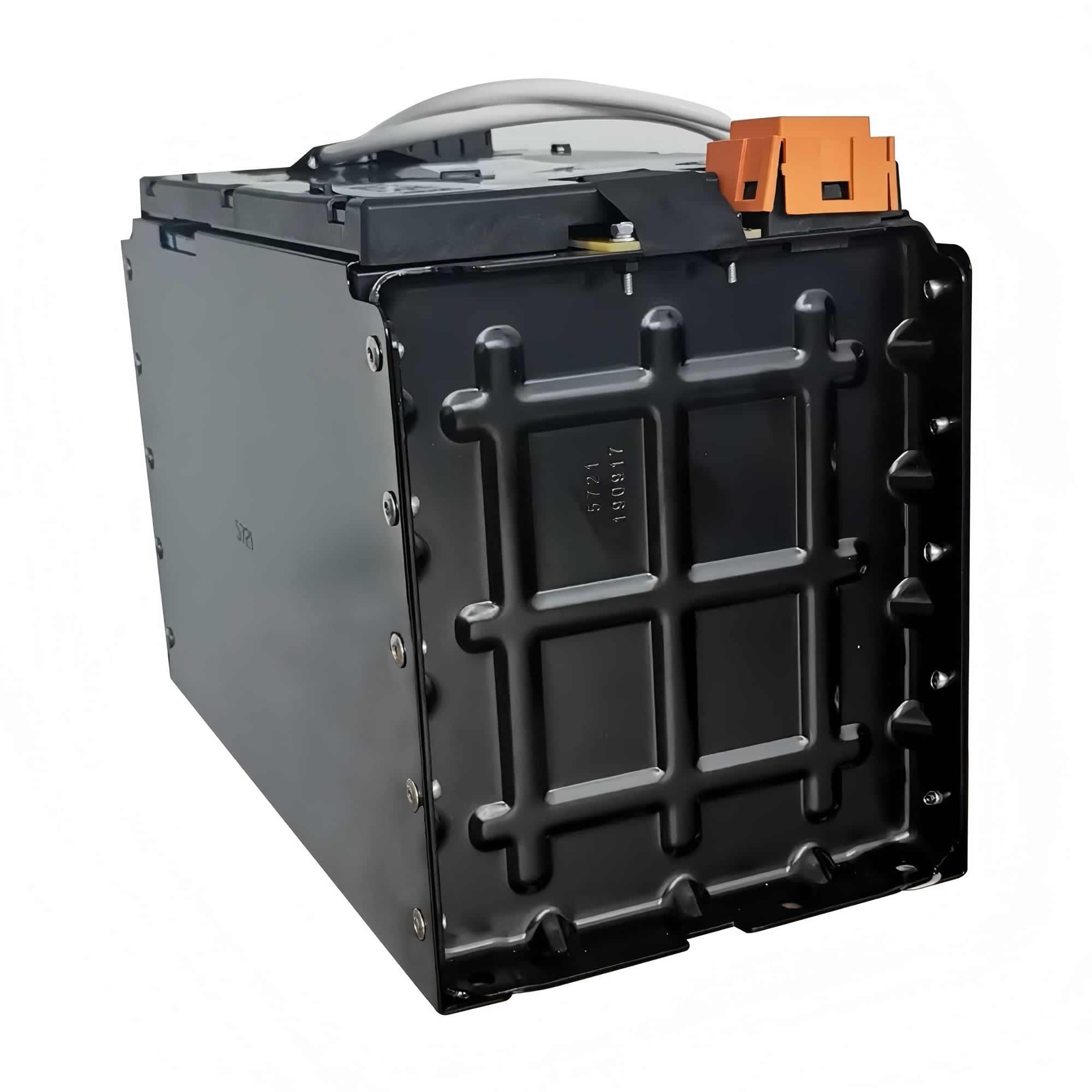

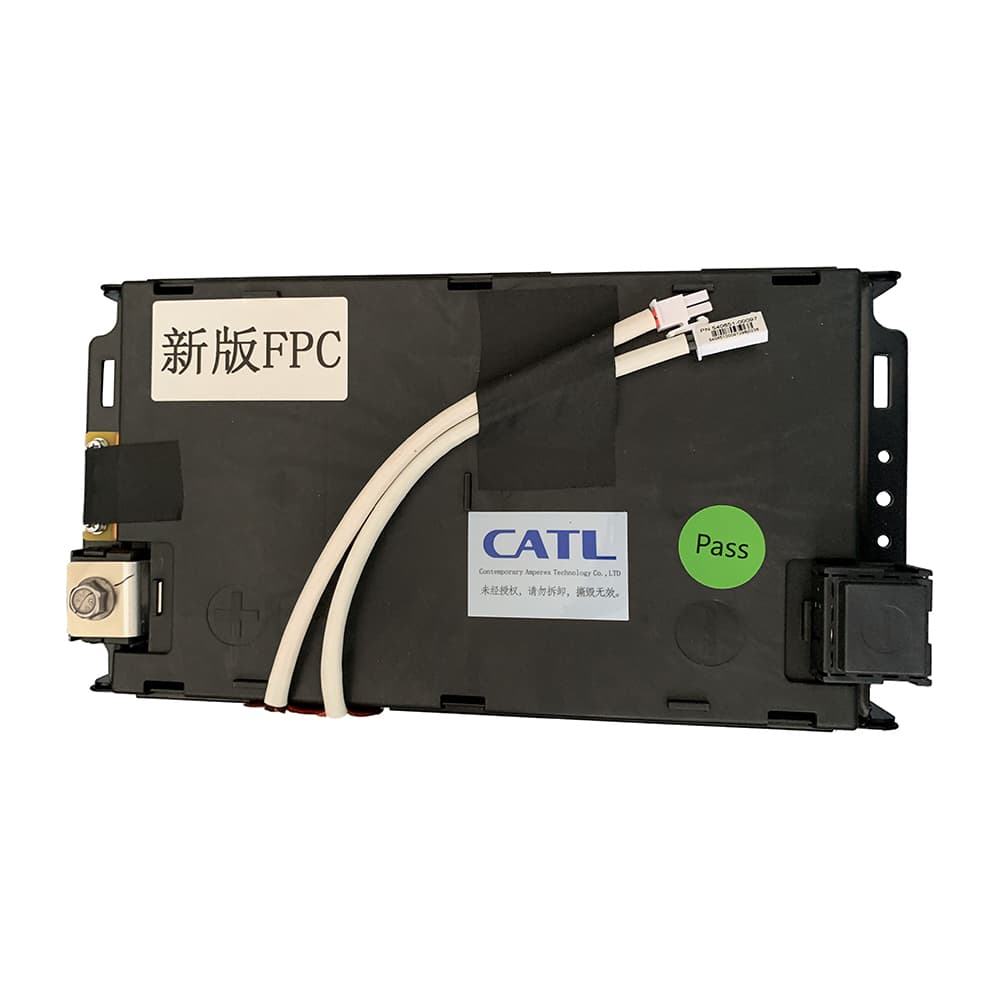

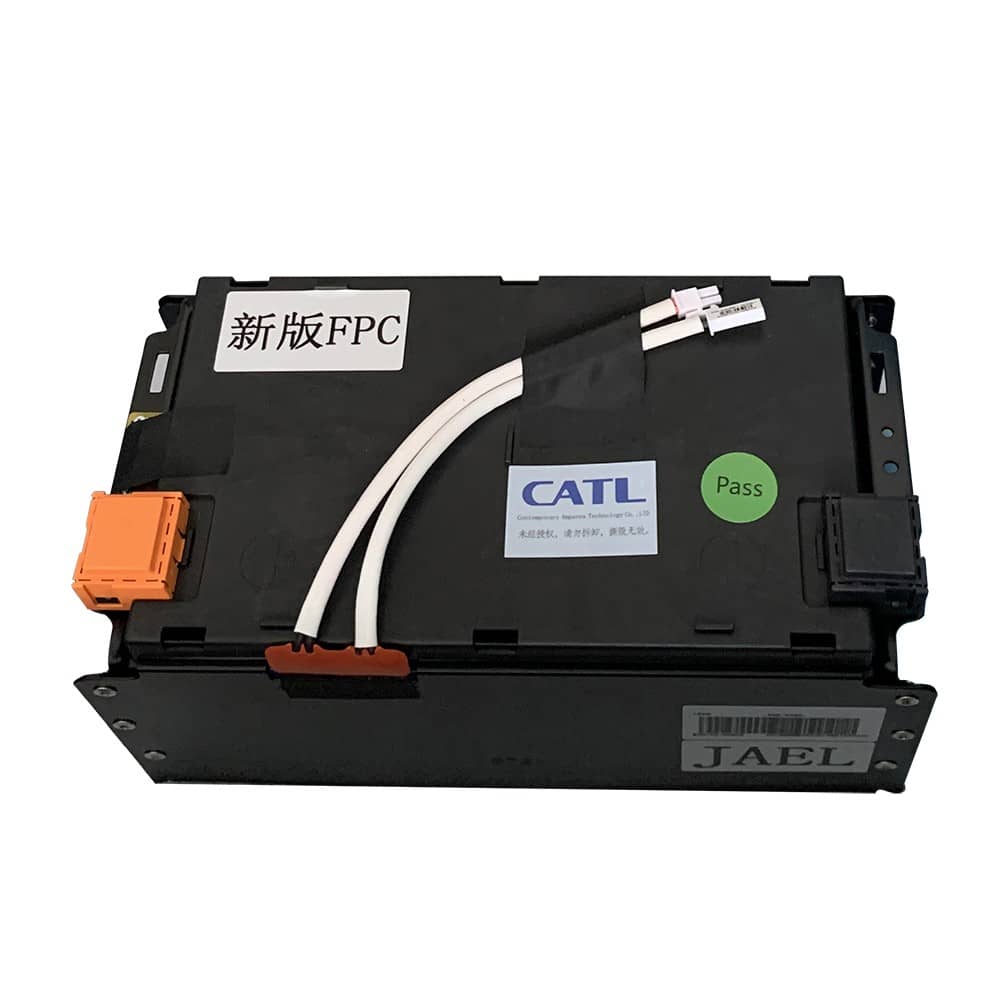

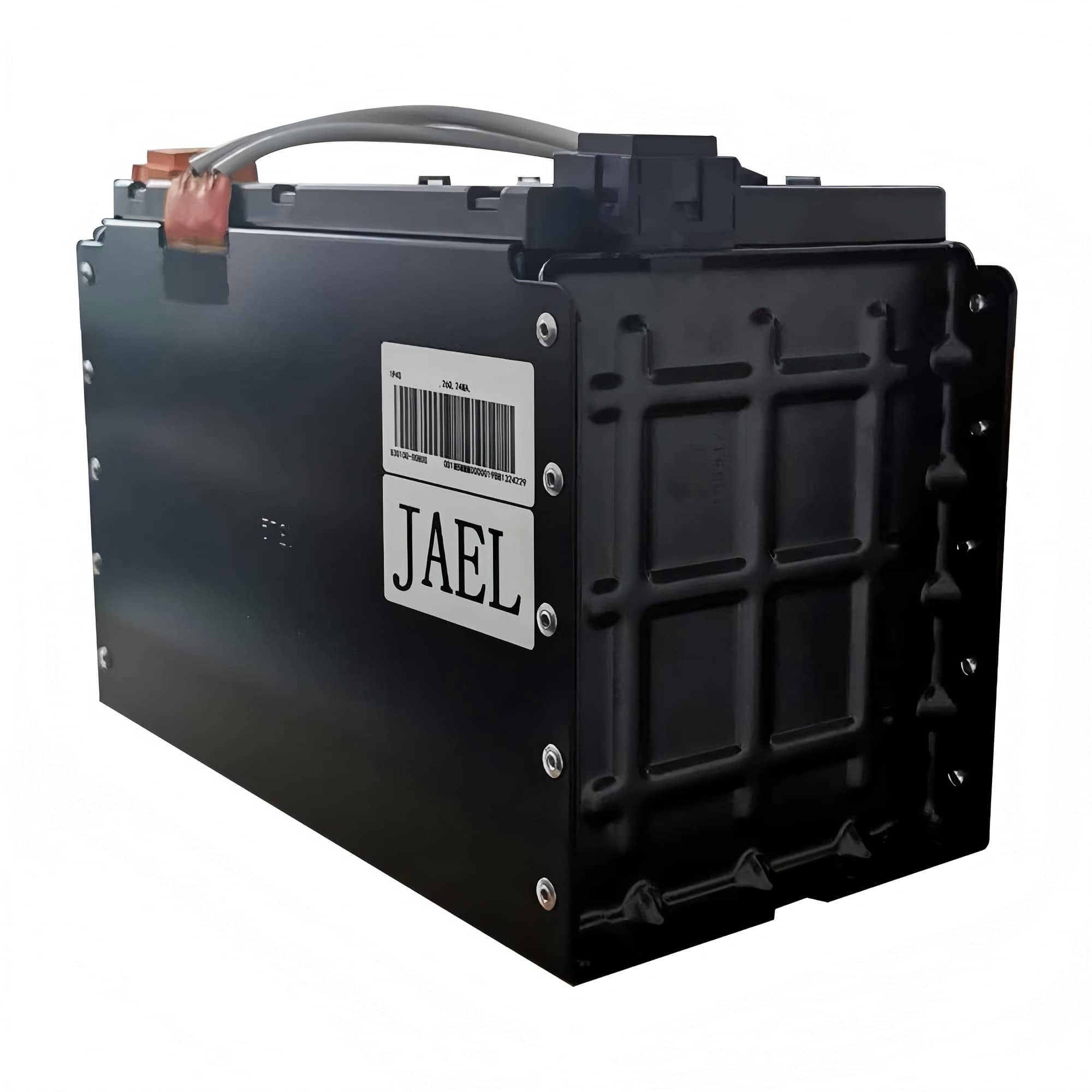

The module is composed of 4 electric cells in series, and is composed of sheet metal end plate, side plate, heating film, FPC and top cover of the module.Module heating film gives module heating function, The FPC is responsible for collecting the voltage and temperature of the cell when the module is working. The blister cover of the module can protect the cell and insulation.
BMS parameter requirements:
A) monomer voltage sampling accuracy error ≤5mV;
B)SOC estimation accuracy error ≤8%;
C)SOH accuracy error ≤5%;
D) current sampling accuracy ≤±1% FSR;
E) temperature sampling accuracy ±2℃;
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Specification
| Item | Parameters | |
|---|---|---|
| Module | 12.88V 202Ah | 12.88V 271Ah |
| Nominal Capacity | 202Ah @ RT， 1C | 271Ah @ RT， 1C |
| Nominal Voltage | 12.88V @25℃ | |
| Operation Voltage | 10V～14.6V | |
| Energy | ≥2601Wh，BOL @1C ，RT | ≥3490Wh，BOL @1C ，RT |
| Available SOC range | 0% ~ 100% | |
| SOC transport range | 40% | |
| Operation Temperature | Charging：0℃~65℃；Discharging：-30℃～65℃ | |
| Storage Temperature | -40°C ~ 60 °C | |
| Working Humidity | 5 % ~ 95 % | |
| Standard Charge Current | 0.5C=101A | 0.5C=135.5A |
| Cycle life | 1C/1C， RT, 3500cycle, ≥80%DOD | |
| Self-discharge Rate | RT，100% SOC，≤3.5%/month | |
| Weight | ≤19.7 Kg | ≤25.2 Kg |
| Dimension | 266.22L*177.5W*236.6H | 337.5L*177.5W*236.6H |
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
