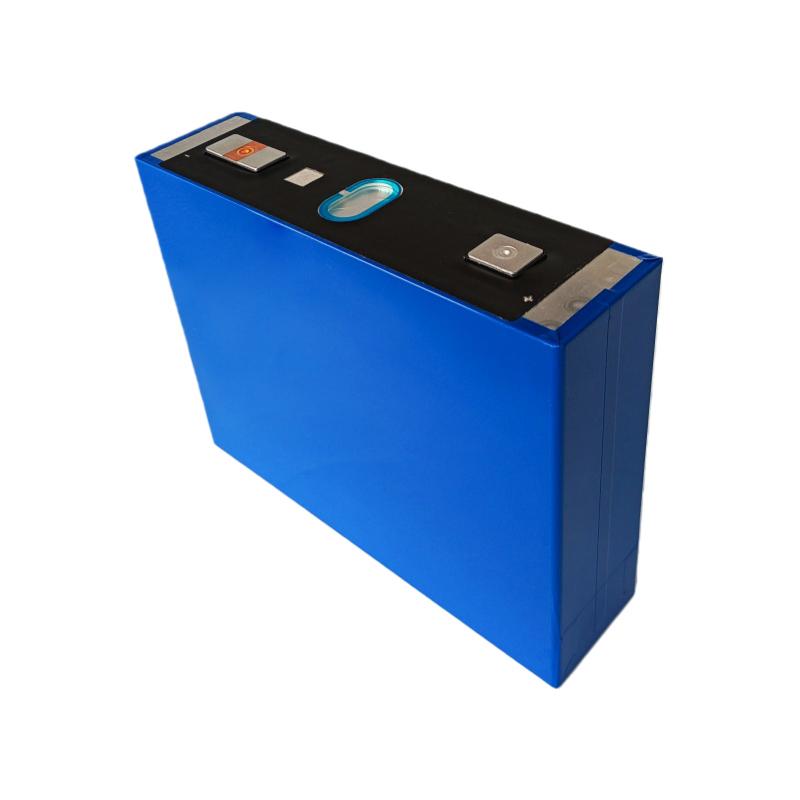

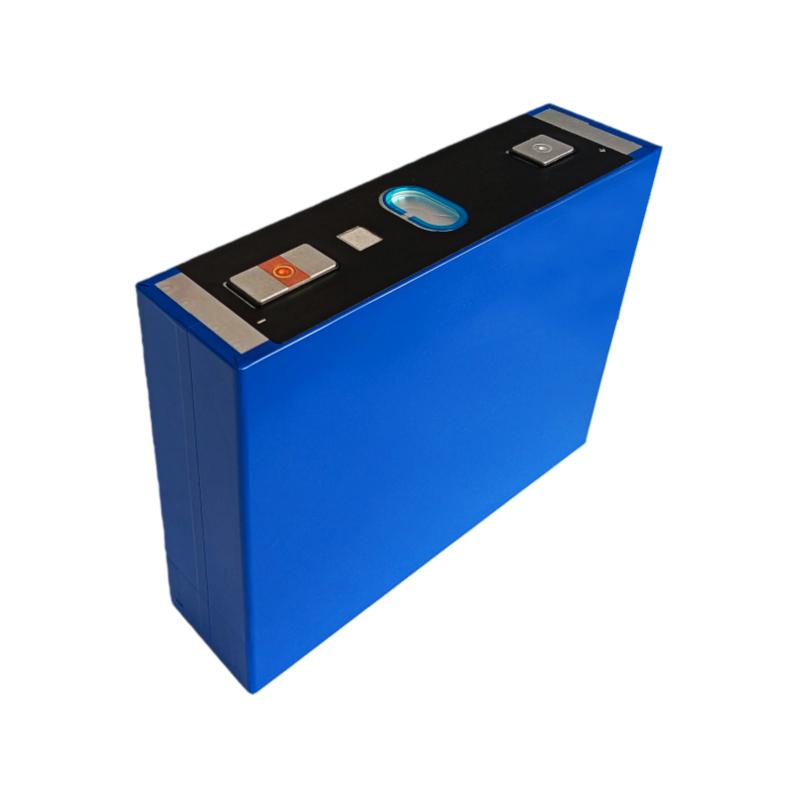

CATL LiFePO4 3.2V 530Ah Battery Cell
Product Details:
Place of Origin: China
Brand Name: CATL
Certification: CE
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 530Ah Nominal Voltage: 3.2V
- Internal Impedence: 0.17±0.05mΩ Operating Votage: 2.5V~3.65V
- Dimension: 203*275*73mm Battery Weight: 9.3±0.3Kg
Product Description
The CATL LiFePO4 3.2V 530Ah battery cell can reduce the number of battery cells in parallel within the system, simplify the structure, enhance the overall reliability and energy density of the system, and ultimately lower the Levelized Cost of Storage (LCOS). This is crucial for energy storage projects that prioritize cost-effectiveness.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Specification
| Parameter | Specification |
|---|---|
| Standard capacity | 530Ah |
| Nominal voltage | 3.2V |
| Battery internal resistance (1KHz) | 0.17±0.05mΩ |
| Battery weight | 9.3±0.3Kg |
| Battery size (Not including the studs) | Height: 203±0.5 mm Length: 275±0.5 mm Thickness: 73±1.0 mm |
| Cycle life | ≥8000cycles |
| Standard charging voltage | 3.65V |
| Discharge cut-off voltage | 2.5V |
| Standard charging current | 0.5C |
| Max charging current | 1C |
| Standard discharge current | 0.5C |
| Max discharge current | 1C |
| Charging temperature | 0~60°C |
| Discharging temperature | -20~60°C |

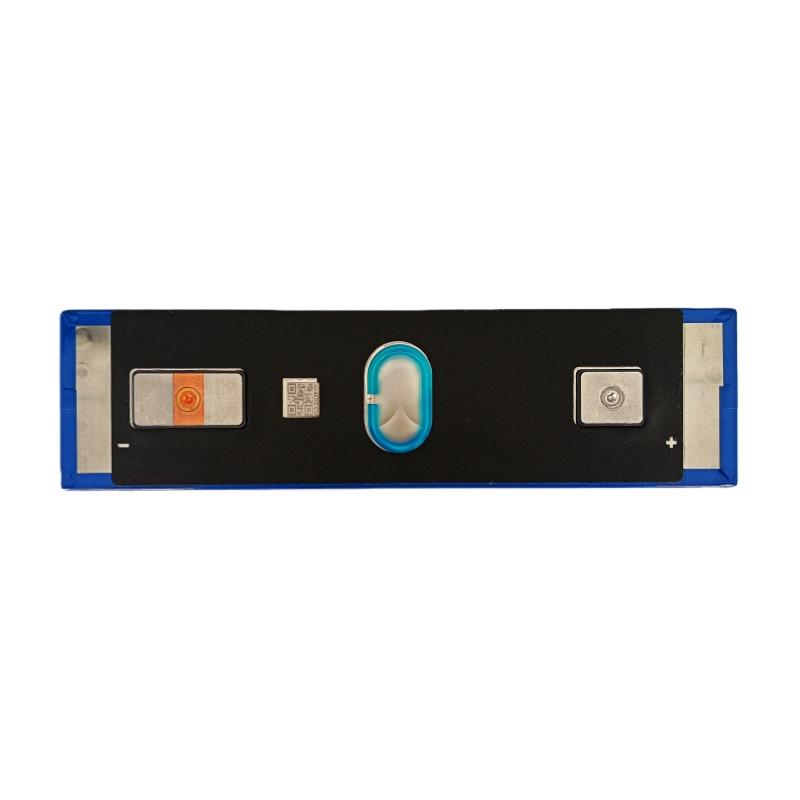

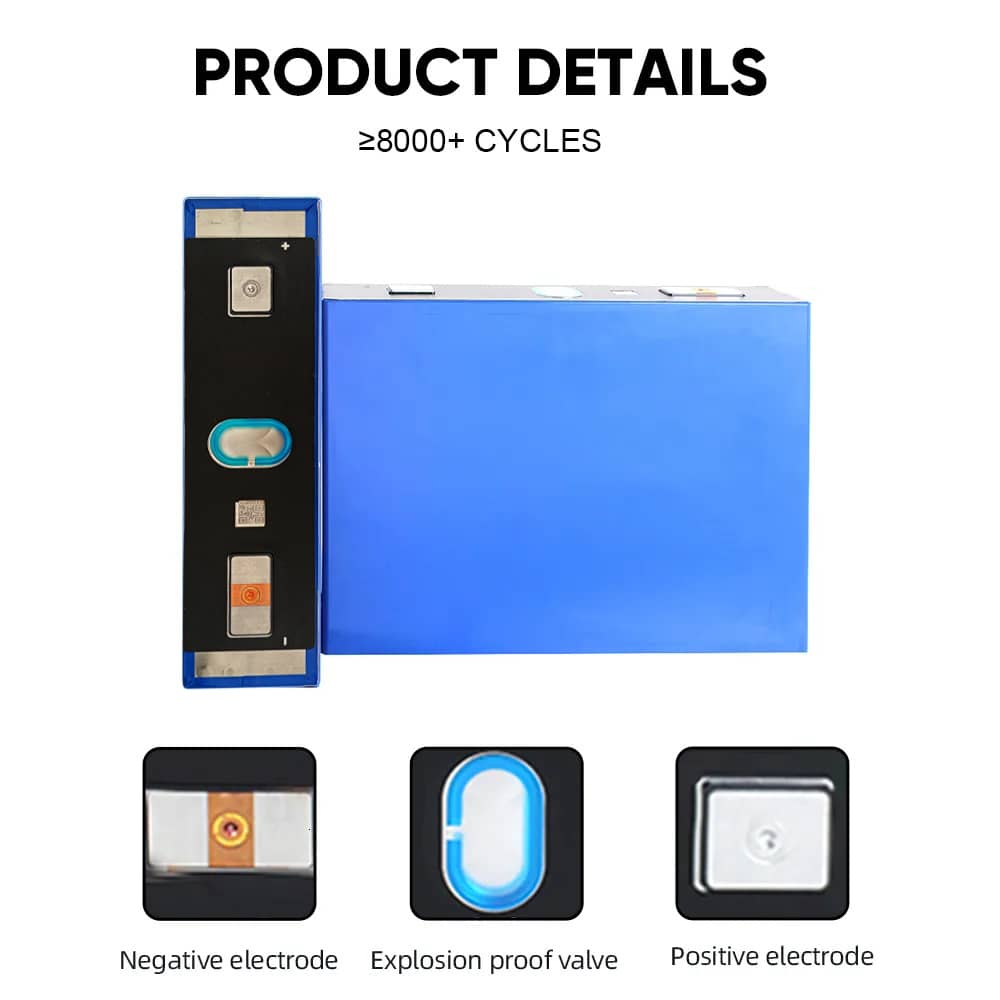

Dimension and Details

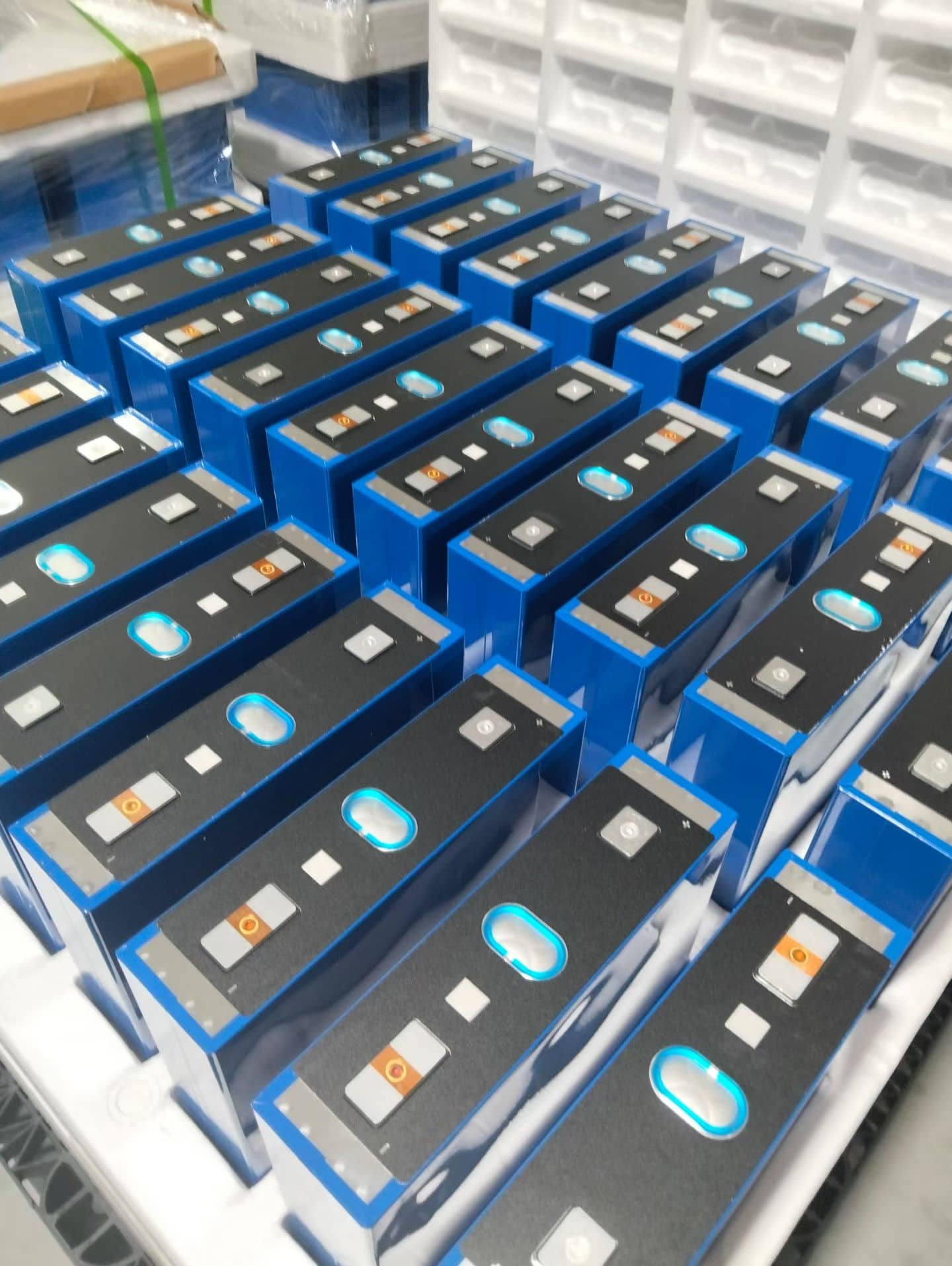

A Large Number of Spot, Offered at Highly Competitive Prices
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
