EVE 4695E 3.7V 30Ah High Discharge Rate Power Cylindrical Lithium Ion Batteries
Product Details:
Place of Origin: China
Brand Name: EVE
Certification: CE
Model Number: 4695E
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T

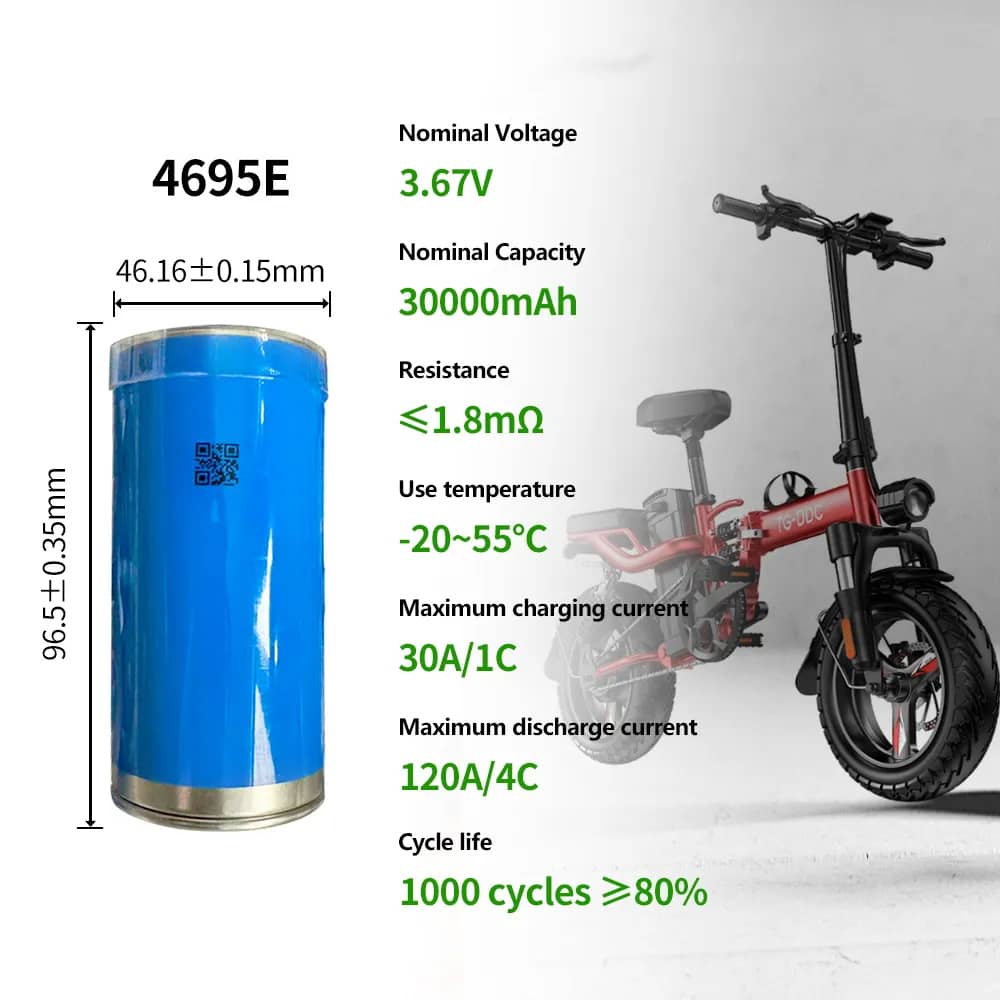

- Nominal Capacity: 30.0 Ah Nominal Voltage: 3.67V
- Nominal Cycles: 1000 cycle Charge/Discharge: 10Ah / 10Ah
- Dimension: （46.16±0.15)×(96.50±0.35)mm Battery Weight: 415±10 g
Product Description
Thanks to the full-tab design, the EVE 4695E full-tab lithium battery cell achieves low internal resistance. This not only improves conversion efficiency and reduces heat generation but also allows for higher current handling, resulting in greater stability and safety. The 4695E is an ideal durable power source for your custom battery pack assembly.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- · High energy and long life: New generation electrode material, cell structure suitbale for CTP and CTC design, greatly improve vehicle range
- · Innovative structure design: Full tab structure JR , low internal resistance, high power, meeting the needs of HEV and BEV
- · Super fast charge: Charge 80% in 10 ~ 20min
- · Safety: High consistency, no propagation
Specification
| Item | Specifications |
|---|---|
| Normal Capacity | 30.0 Ah; 1/3C; 25±2°C, 2.8~4.2 V |
| Normal Energy | 110.0Wh; 1/3C, 25±2°C, 2.8~4.2 V |
| Nominal Voltage | 3.67V (1/3C) |
| Discharge Capacity | ≥30.0 Ah; 25°C, 1/3C, 2.8~4.2 V; |
| Discharge Energy | ≥110.0 Wh25°C, 1/3C, 2.8~4.2V |
| AC Internal Resistance of BOL Status | ≤1.8 mΩ |
| DC Internal Resistance of BOL Status | ≤4.0 mΩ |
| Standard Charge Current | 10Ah (1/3C) |
| Standard Discharge Current | 10Ah (1/3C) |
| Maximum Continuous Charging Current | 1C; (0%, 90%) SOC |
| Cycle Life | 1000 cycle, 25°C, 3.0~4.15 V, 0.5C/0.5C |
| Environmental Temp | 0~45°C; Charge Temp |
| -20~45°C; Discharge Temp | |
| Storage Temp | 0~25°C; 1 Year |
| 0~45°C; 3 Month | |
| -20~55°C; 1 Month | |
| Self Discharge Rate@25℃ | First month 0.05 V/ month Followed by 0.03V/ month |
| Shipping Voltage Range | 3.5~3.8V |
| Multiple Rate Discharge | 25°C, 3C; ≥90% Of 1C Discharge Capacity |
| High and Low Temperature Discharge | -20°C, 1C; Capacity Retention Rate ≥80 % |
| 55°C, 1C; Capacity Retention Rate ≥90 % | |
| Cell Weight (With Insulating Film) | 415±10 g |
| Cell Dimension | （46.16±0.15)×(96.50±0.35)mm |
Dimension and Details
A Large Number of Spot, Offered at Highly Competitive Prices
Certification
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
