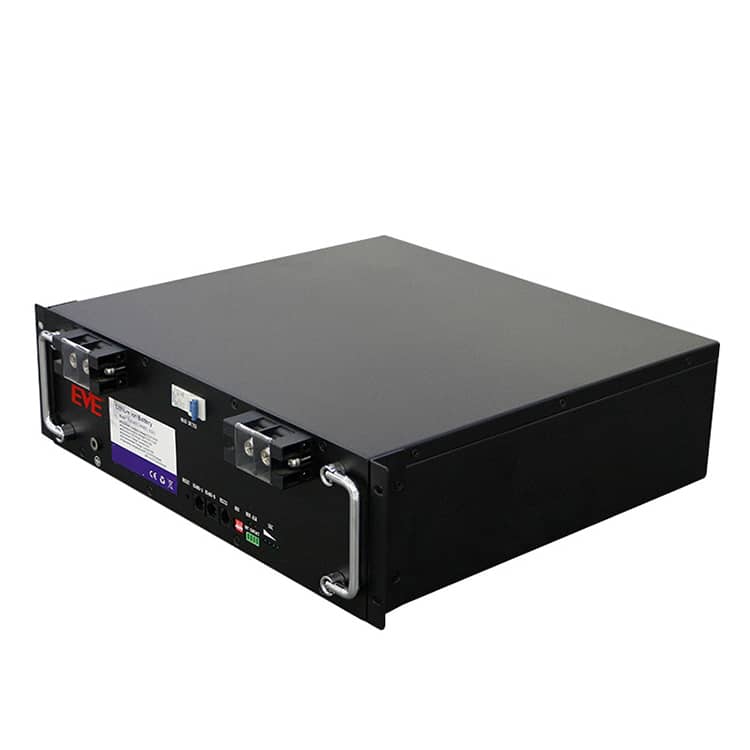

EVE 48100 48V 100Ah LiFePO4 Battery Pack
Product Details:
Place of Origin: China
Brand Name: EVE
Certification: CE
Model Number: 48100
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 100Ah Nominal Voltage: 48V
- Nominal Cycles: 2000Cycles Charge/Discharge: 0.2C/0.5C
- Dimension: 442*410*177.5mm Battery Weight: 72kg
Product Description
The EVE 48100 LiFePO4 battery pack is composed of 15 EVE LF105 cells connected in series. (EVE LF105 features low internal resistance, high discharge rate, stable charging and discharging performance, and long cycle life.) This battery pack integrates an intelligent Battery Management System (BMS), which provides protection against low voltage, high voltage, short circuits, and overheating.
These batteries are an ideal replacement for most 48V systems that support lithium. It can be powered in various ways, from renewable sources to off-peak grid energy. These batteries are reliable, offering premium quality in every aspect. They are suitable for both homes and businesses. Whether you are on-grid or off-grid, they provide exactly what you need.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Product Features
- · Communication functions, ensuring the reliability of battery pack performance and achieving remote real-time monitoring of battery data
- · Standard maintenance free design, suitable for installation in 19 inch communication cabinets
- · Wide temperature range and high reliability
- · Long lifespan, with battery pack cycling llife exceeding 3000 times
- · Low internal resistance of the battery, superior rate discharge performance
- · Multiple battery packs can be used in parallel, suitable for high-capacity applications
Specification
| Items | Parameters | Remarks |
|---|---|---|
| Rated Capacity | 100Ah | 25℃±3℃, 0.2C constant current discharging, 40.5V cut off |
| Rated Voltage | 48V | |
| Standard Charge Current | 20A（0.2C） | 0.2C CC（Constant current）charge to 54.0V， then CV（constant voltage）charge， cut off when charging current≤0.05C. |
| Max Continuous Charge Current | 50A（0.5C） | Do not exceed 0.5C |
| Max Charge Current | 100A（1C） | Requirement: 1 cycle/day |
| Charge Cut Off Voltage | 54.0V | Equalized Charge Voltage：53.5V Floating Charge Voltage：51.0V |
| Standard Discharge Current | 20A（0.2C） | 0.2C CC（Constant Current）discharge, cut off @40.5V. |
| Max Continuous Discharge Current | 50A（0.5C） | Continuous 50Adischarge |
| Max Discharge Current | 100A(1C) | Requirement: 1 cycle/day |
| Discharge Cut Off Voltage | 40.5V | 2.7V/Cell, 40.5V / Pack. |
| Max Pulse Discharge Current | 130A | 25℃±3℃,≤1s |
| Working Temperature (charge) | 0℃~55℃ | 0℃-10℃：continuous 20A（max）charge 10℃-45℃: continuous 50A（max）charge 45℃-55℃：continuous 20A（max）charge |
| Working Temperature (discharge) | -20℃~55℃ | Battery can work at specified temperature range with capacity loss in tolerance. |
| Storage temperature | -20℃～ 45℃ | (short term) Within 1 month |
| Storage temperature | 0℃～35℃ | (long term) Within 1 year |
| Battery Weight | About 45Kg | |
| Battery Impendence | ≤30mΩ | DC Internal Resistance |
| Charge/Discharge Efficiency | ≥95% | Charge/discharge efficiency in Wh (round trip efficiency) at 0.2C charge and discharge current，25℃. |

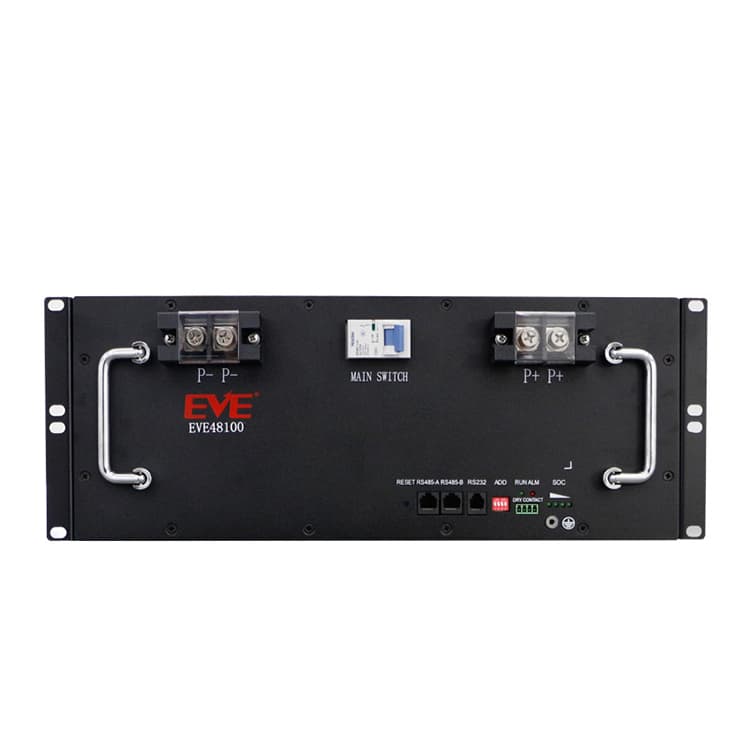

Dimension and Details
Certification
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
