EVE LF105 LiFePO4 3.2V 105Ah Prismatic Battery Cell Supports 3C High Discharge Rate
Product Details:
Place of Origin: China
Brand Name: EVE
Certification: CE
Model Number: LF105
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 105Ah Nominal Voltage: 3.20V
- Nominal Cycles: 4000Cycles Charge/Discharge: 0.5C/0.5C
- Dimension: 130.3*36.3*200.5mm Battery Weight: 1980±60g
Product Description
The EVE 105Ah LiFePO4 battery features a 3C high-discharge rate, delivering powerful performance, fast charging, and a long cycle life. It can be used in energy storage systems, construction machinery, electric forklifts, electric loaders, RVs, telecom backup systems, and more—ensuring reliable and efficient energy storage across various applications.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Product Features
- · High Consistency: Fully automated production lines and high-precision equipment ensure battery consistency.
- · Stable Performance: Low internal resistance, high discharge rate, and stable discharge.
- · Long Lifespan: Up to 4000 cycles, with a capacity retention rate of ≥80% under (25°C 0.5C/0.5C) conditions.
- · High Safety: High-precision explosion-proof valve design, ensuring safety with no leakage.
- · Environmentally Friendly: Certified by environmental management systems.
- · Customization: Tailored to customer requirements.
Specification
| Item | Parameter | Remark |
|---|---|---|
| Typical Capacity | 106.5 Ah @ 1.0C discharge | Discharge current 1.0C with 2.5V cut off. (25±2)℃ |
| Minimum Capacity | 105.0 Ah @ 1.0C discharge | |
| Typical Voltage | 3.2V | Under 0.5CA cc-discharge |
| AC Impedance Resistance | 0.32mΩ±0.05mΩ | |
| Charge current（CC-CV）Max Charge Current | 1C | The maximum charge current of the battery does not exceed 1C Cut under 0℃～45℃. |
| Charge current（CC-CV）Cut-off Voltage | 3.65V | |
| Discharge Max Discharge Current | 3C | Preference value. |
| Discharge Cut-off Voltage | 2.5V | |
| Charging time Standard | 2.0h | 0.5C charge (time is reference) |
| Charging time Quick-charge | 1.0h | 1C charge (time is reference) |
| Recommend SOC Window | SOC：10%~90% | |
| Charging Temperature | 0℃~65℃ | |
| Discharging Temperature | -35℃~65℃ | |
| Storage Temperature One month | -20℃~45℃ | |
| Storage Temperature One year | 0℃~35℃ | |
| Storage Humidity | ＜70﹪ | |
| Cycle life | ≥4000cycle | 25℃, 80% DOD |
| Weight | 1980g±60g | |
| Dimension(W*T*H) | 130.3*36.35*200.5mm |

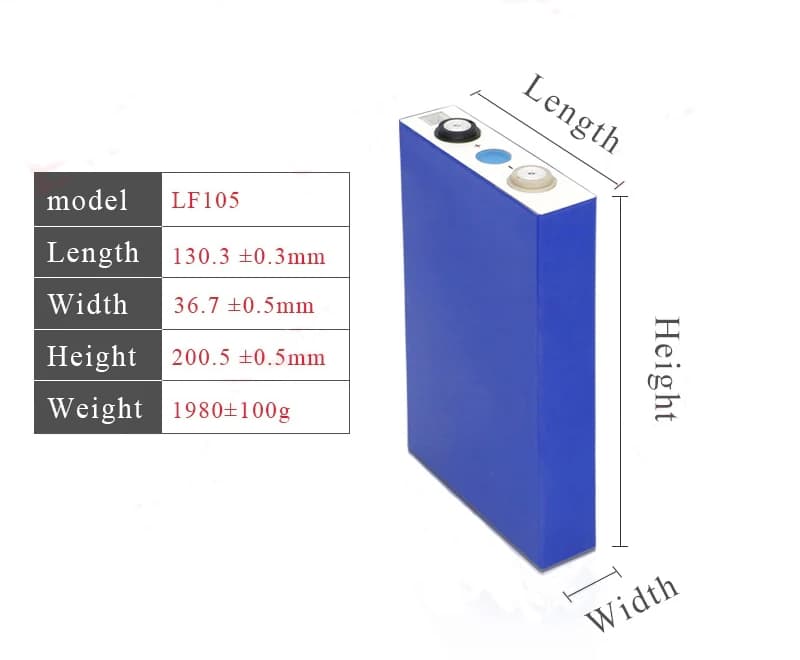

Dimension and Details

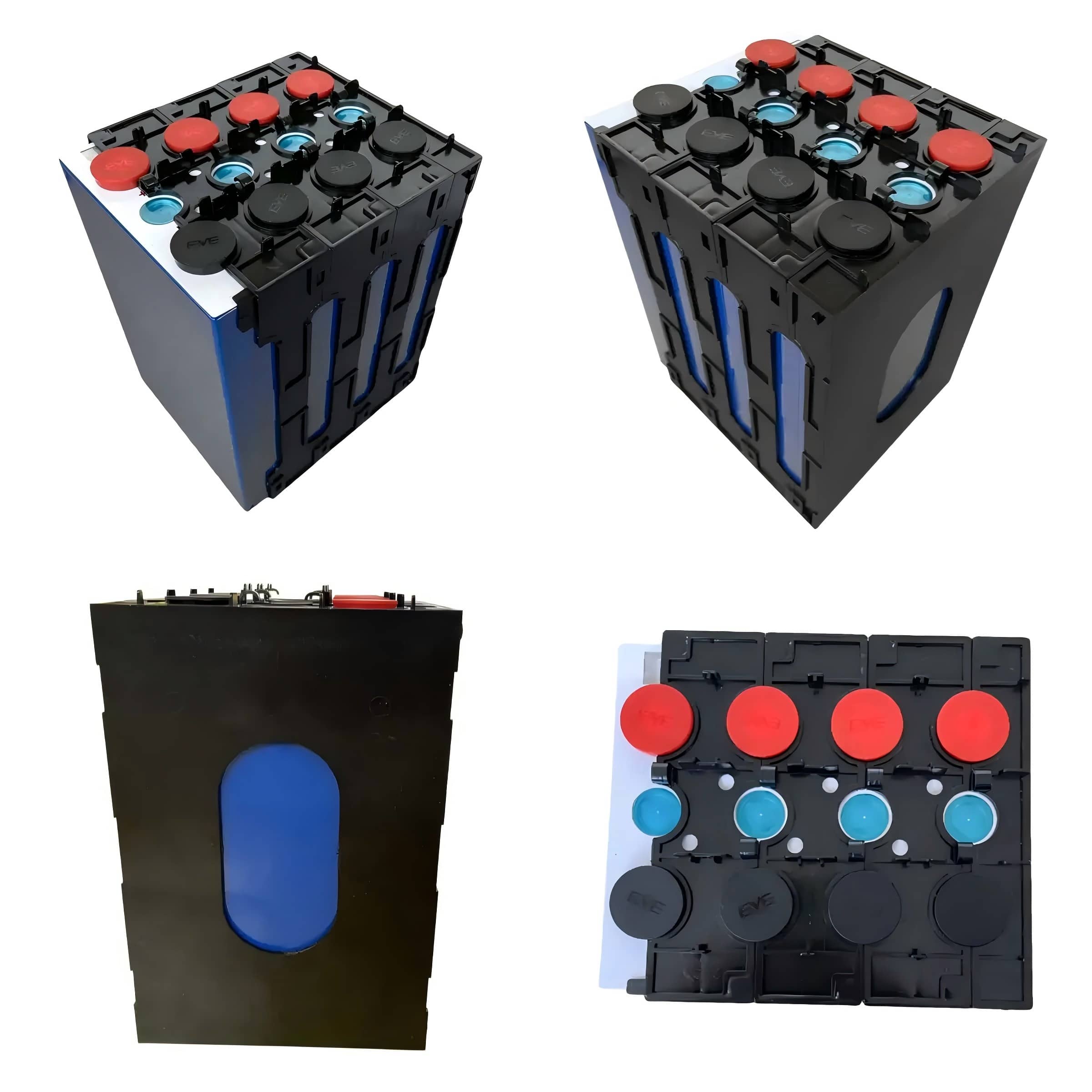

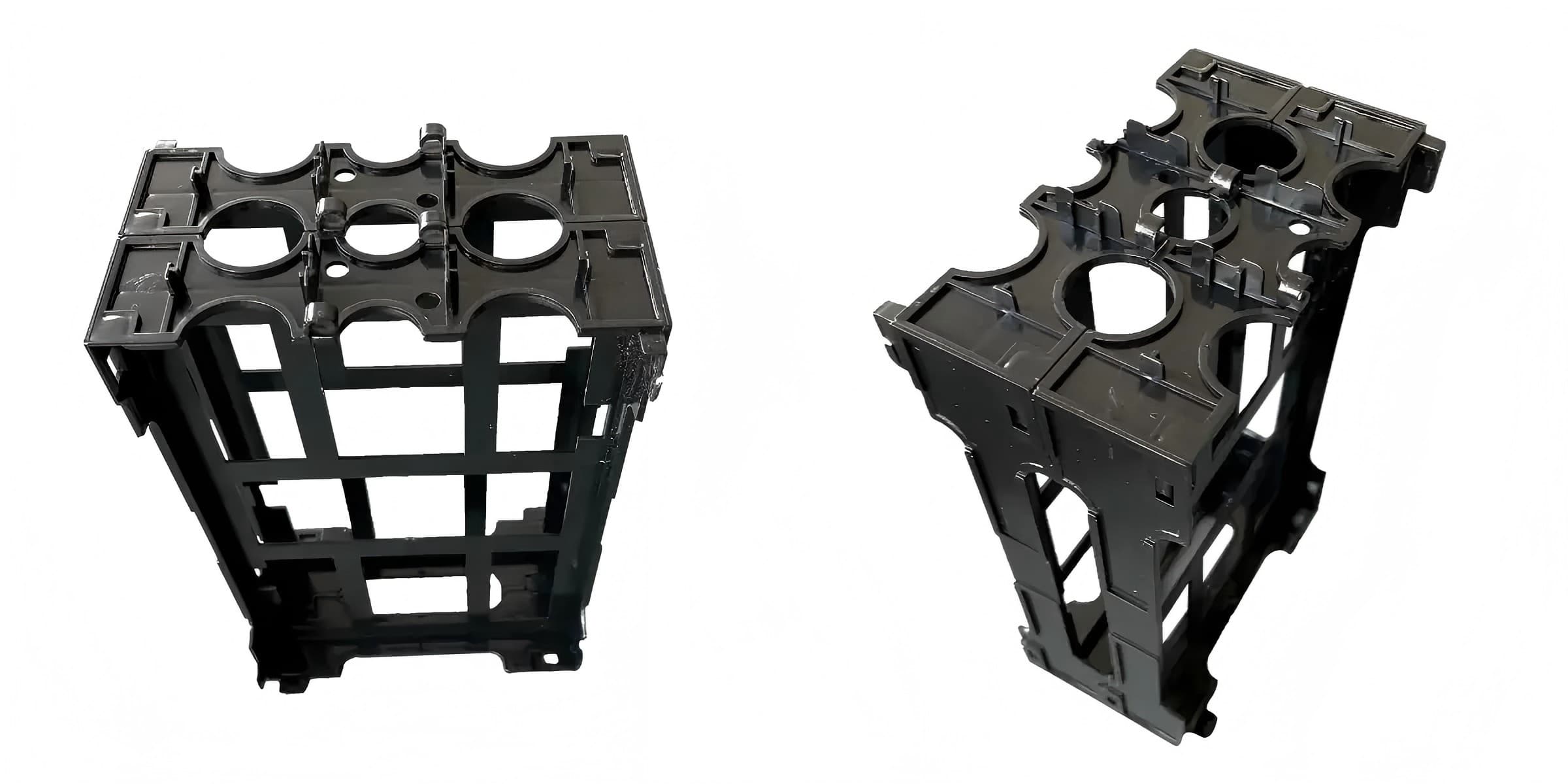

Now we provide the customized braket for EVE LF105 LiFePO4 3.2V 105Ah Battery Cell, The holders serve a dual purpose, not only simplifying the battery module installation but also maintaining proper spacing between the batteries. This prevents battery expansion and enhances heat dissipation, thereby boosting battery performance.

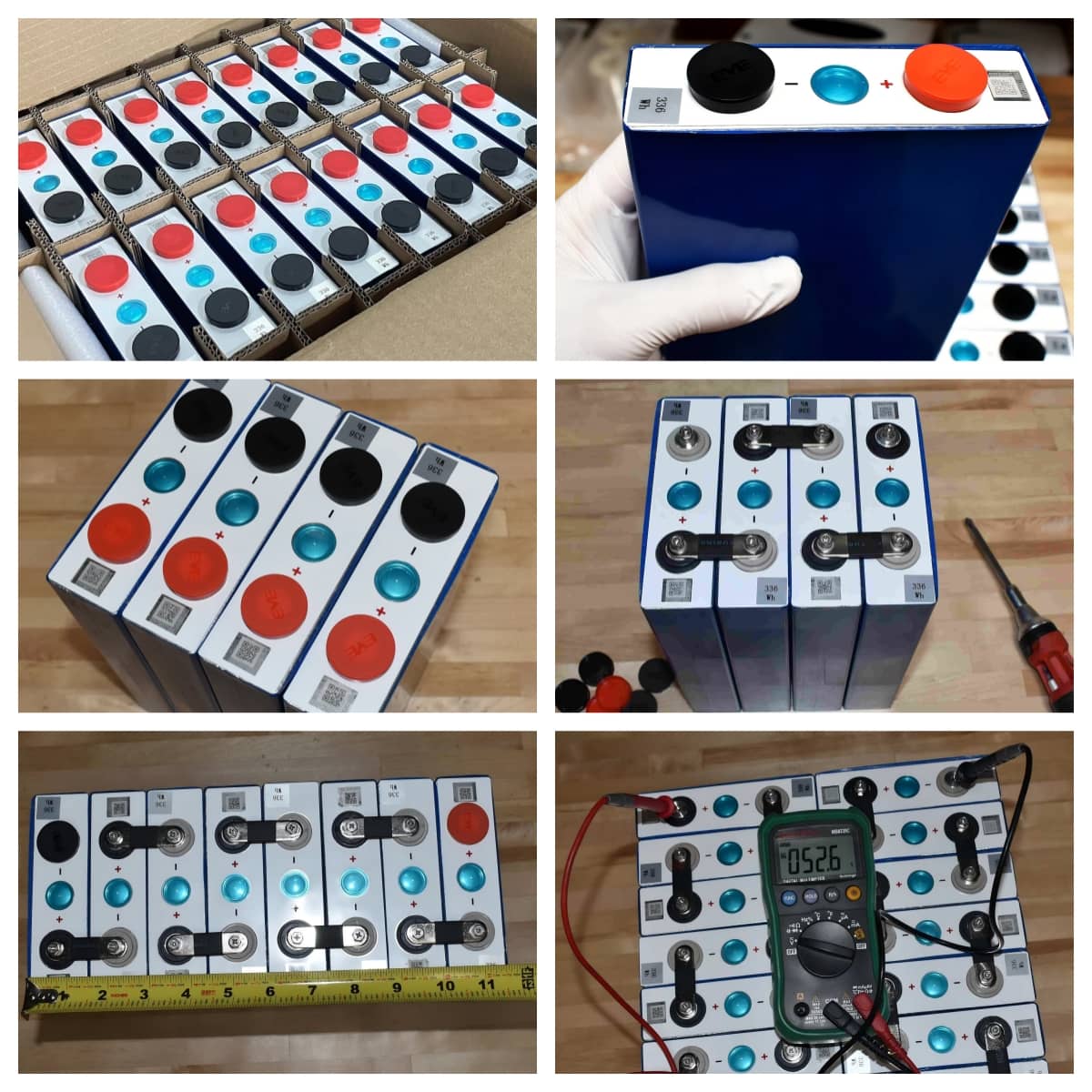

These are the real photos after the battery installation bracket:

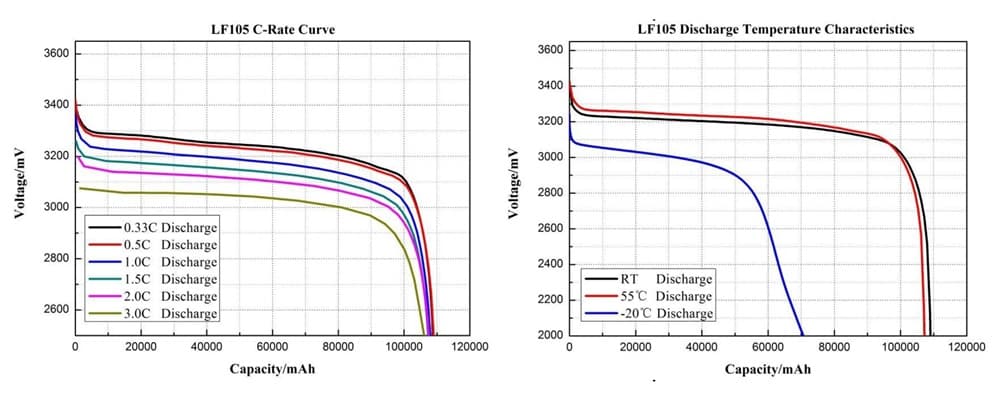

Electrical Performance Diagram
Certification
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
