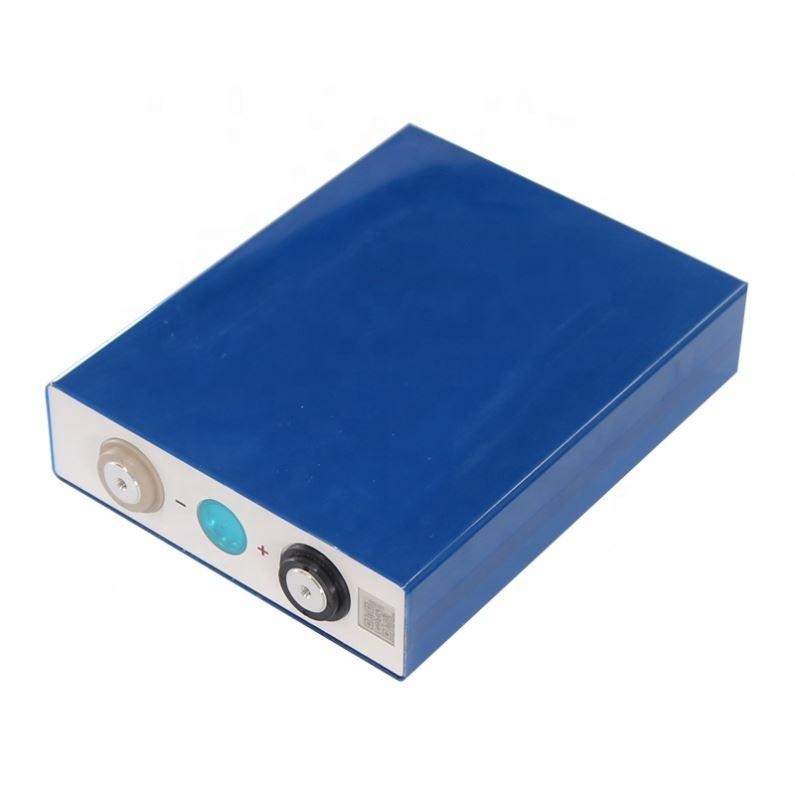

EVE LF80 3.2V LiFePO4 80ah Battery Cell
Product Details:
Place of Origin: China
Brand Name: EVE
Certification: CE
Model Number: LF80
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 80Ah Nominal Voltage: 3.2V
- Nominal Cycles: 4000 Cycles Charge/Discharge: 0.5C/0.5C
- Dimension: 130.3*36.35*170.5mm Battery Weight: 1680g±50g
Product Description
100% brand new, grade-A EVE LF80 3.2V LiFePO4 80ah Battery Cell offers a low internal resistance, long cycle life, high safety and a wide operating temperature range. Suitable for BOATS, Golf Carts, Electric Bicycles/Scooters, electric vehicles, Electric Power Systems, Solar Energy Storage Systems, Electric Forklifts etc.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Product Features
- · High Consistency: Fully automated production lines and high-precision equipment ensure battery consistency.
- · Stable Performance: Low internal resistance, high discharge rate, and stable discharge.
- · Long Lifespan: Up to 4000 cycles, with a capacity retention rate of ≥80% under (25°C 0.5C/0.5C) conditions.
- · High Safety: High-precision explosion-proof valve design, ensuring safety with no leakage.
- · Environmentally Friendly: Certified by environmental management systems.
- · Customization: Tailored to customer requirements.
Specification
| Item | Parameter Specification | |
|---|---|---|
| Min. Capacity | 80Ah | |
| Min. Energy | 256Wh | |
| Initial IR | <0.5mΩ | |
| Nominal Voltage | 3.2V | |
| Weight | 1680g±50g | |
| Charging Cut-off Voltage(Umax) | 3.65V | |
| Discharging Cut-off Voltage (Umin) | 2.5V ( T>0°C ) 2.0V ( T<0°C ) |
|
| Standard Charging Current | 40A | |
| Standard Discharging Current | 80A | |
| 25°C Standard Cycle | 4000 Cycles | |
| 45°C Standard Cycle | 1800 Cycles | |
| Operation Temperature | Charging Temperature | 0 ~65°C |
| Discharging Temperature | -35~65°C | |
| Storage Temperature | 3 months | 0 ~45°C |
| 1 month | -20~45°C | |
| Welding Parameter of Al Busbar | Laser Welding Depth | ≤2.5 mm |
| Max Pressure Force on Terminals | 900 N | |
| Max Torque Force on Terminals | 6N·m | |
| Max Temperature Force on Terminals | 130°C | |

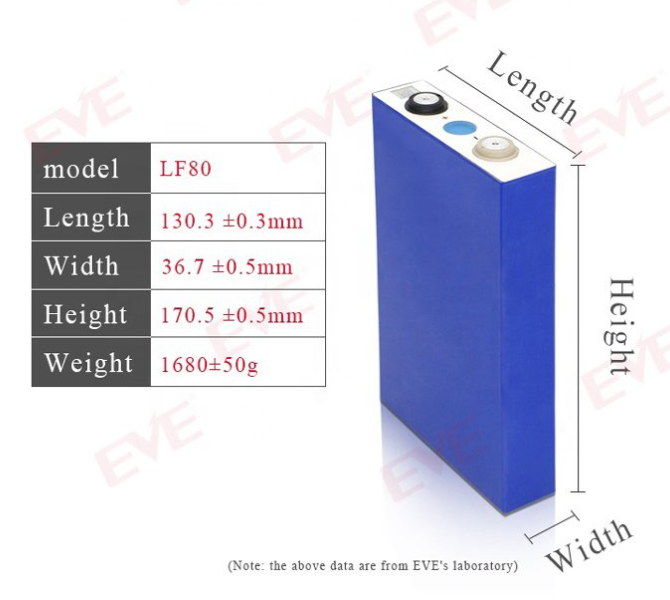

Dimension and Details

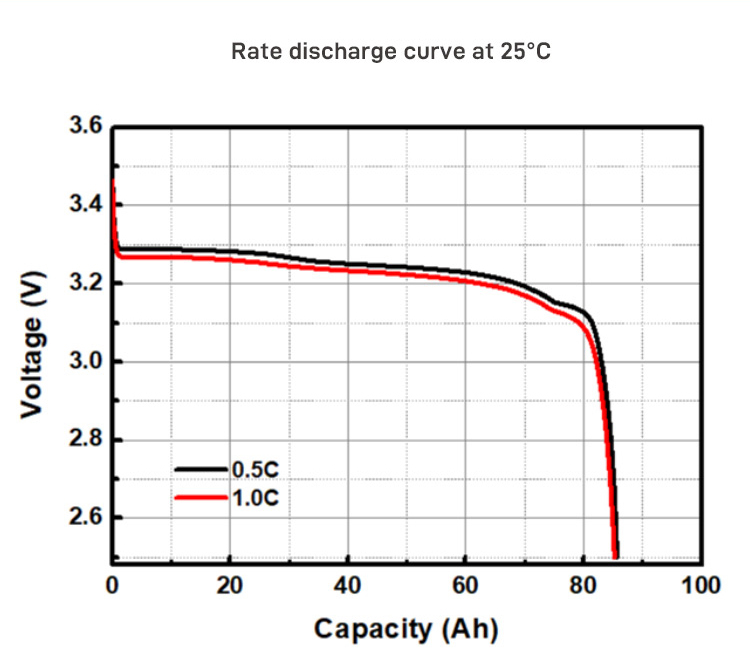

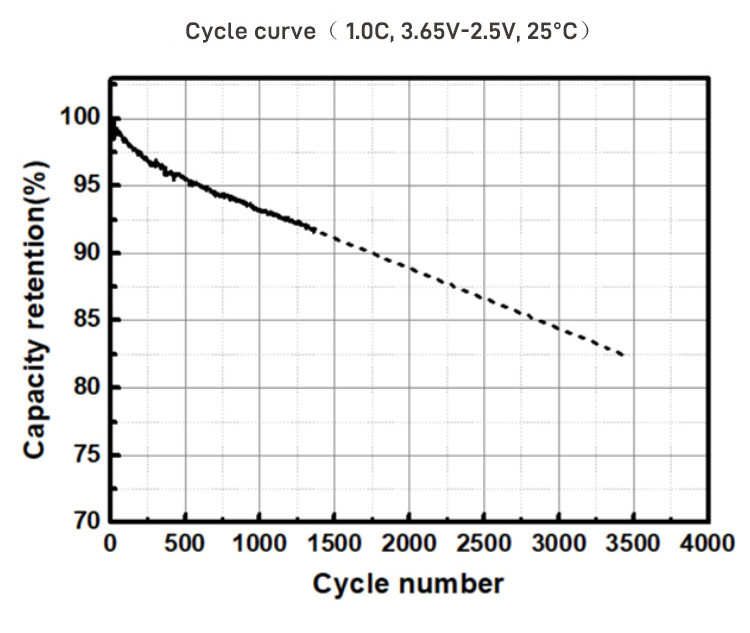

Electrical Performance Diagram
Certification
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
