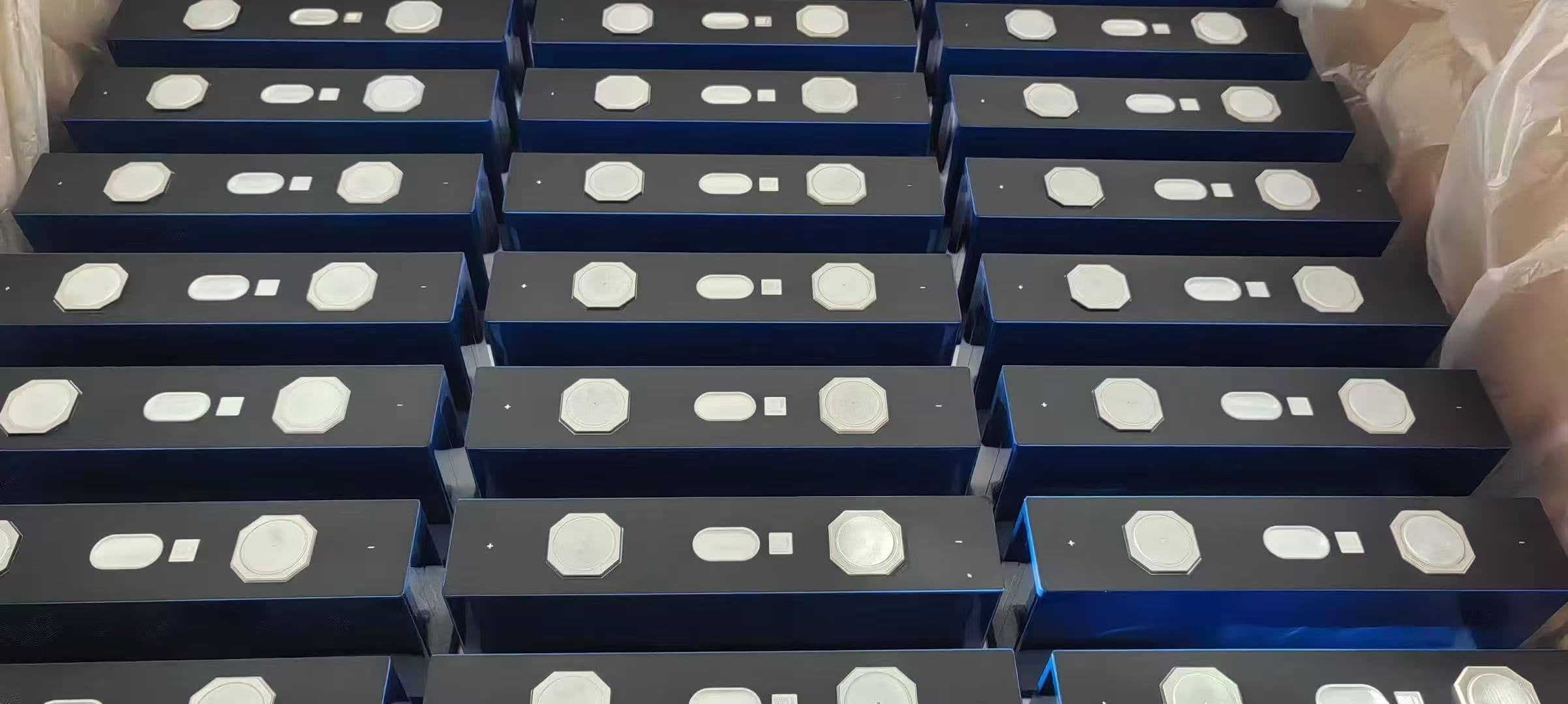

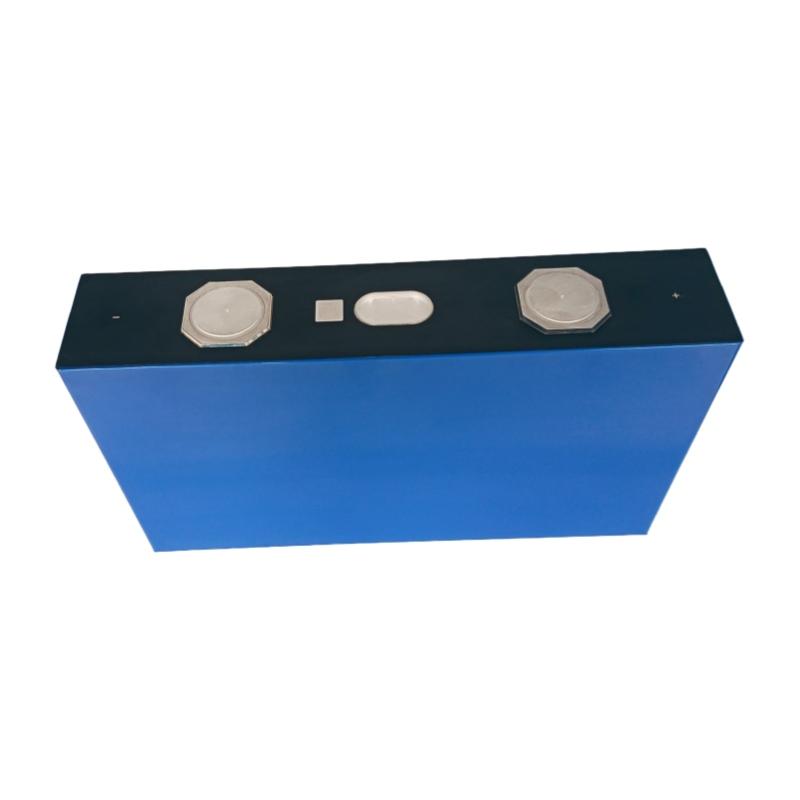

EVE MB56 3.2V 628Ah High Capacity Long Cycle LiFePO4 Single Battery Cell
Product Details:
Place of Origin: China
Brand Name: EVE
Certification: CE
Model Number: MB56
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 628Ah Nominal Voltage: 3.2V
- Nominal Cycles: 8000 cycles Charge/Discharge: 0.5P/0.5P
- Dimension: 352.3*71.7*207.2mm Battery Weight: 11500 g ±300 g
Product Description
The EVE MB56 628Ah ultra-high capacity cell simplifies the energy storage system, reducing the number of data collection points in power stations of the same scale by half. According to calculations, this can reduce the lifecycle operation and maintenance costs of energy storage stations by 30%, while operation and maintenance time can be reduced from 336 hours per year to 232 hours.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Product Features
- · High Consistency: Fully automated production lines and high-precision equipment ensure battery consistency.
- · Stable Performance: Low internal resistance, high discharge rate, and stable discharge.
- · Long Lifespan: Up to 8000 cycles, with a capacity retention rate of ≥70% under (25°C 0.5C/0.5C) conditions.
- · High Safety: High-precision explosion-proof valve design, ensuring safety with no leakage.
- · Environmentally Friendly: Certified by environmental management systems.
- · Customization: Tailored to customer requirements.
Specification
| Items | Specifications | Remarks |
|---|---|---|
| Nominal Capacity | 628Ah | 0.5P / 0.5P, 25℃ ± 2℃, 2.5 V ~ 3.65 V Fresh cell |
| Nominal Energy | 2009.6 Wh | |
| Nominal Voltage | 3.2V | / |
| End-of-charge Voltage (Umax) | 3.65 V | / |
| End-of-discharge Voltage (Umin) | 2.5 V (T >0℃) 2.0 V (T ≤0℃) |
/ |
| Cycle Life | 8000 cycles, 70% SOH | 25℃ Cycle |
| Standard Charging Power | 0.5P | 25℃ ± 2℃ |
| Max. Continuous Charging Power | 0.5P | 25℃ ± 2℃ |
| Standard Discharging Power | 0.5P | 25℃ ± 2℃ |
| Max. Continuous Discharging Power | 0.5P | 25℃ ± 2℃ |
| Initial Internal Resistance | 0.10 mΩ ± 0.05 mΩ | AC, 1 kHz, Delivery SOC, Fresh cell |
| Weight | 11500 g ±300 g | / |
| Dimensions (With insulation film) |
Height1 207.2 mm ±0.5 mm |
With Terminal |
| Height2 205.1 mm ±0.5 mm |
Without Terminal | |
| Length 352.3 mm ±0.5 mm |
/ | |
| Thickness 71.7 mm ±0.5 mm |
(300 kgf ±20 kgf compression force, Delivery SOC) |
|
| Center distance between the poles 180.0 mm ±0.3 mm |
/ | |
| Charging Temperature | 0℃ ~ 60℃ | / |
| Discharging Temperature | -30℃ ~ 60℃ | / |
| Storage Temperature 1 year | 0℃ ~ 35℃ | Delivery SOC status |
| Storage Temperature 1 month | -20℃ ~ 45℃ | |
| Self-discharge First Month | ≤3.5% / M | Delivery SOC status, 25°C ±2°C storage |
| Self-discharge After First Month | ≤3.0% / M |

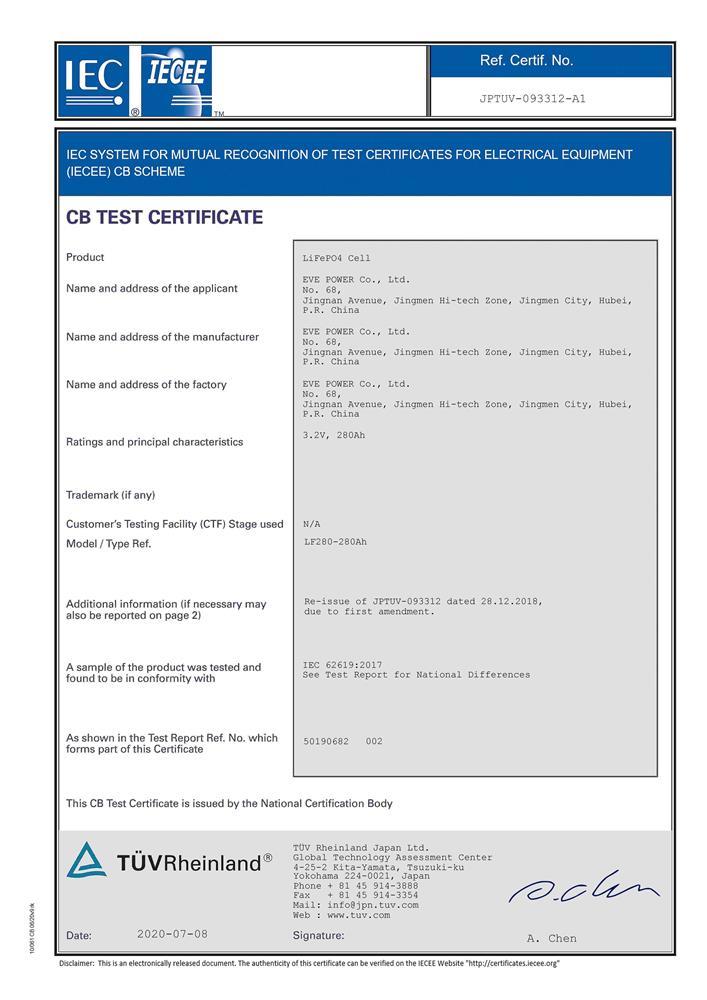

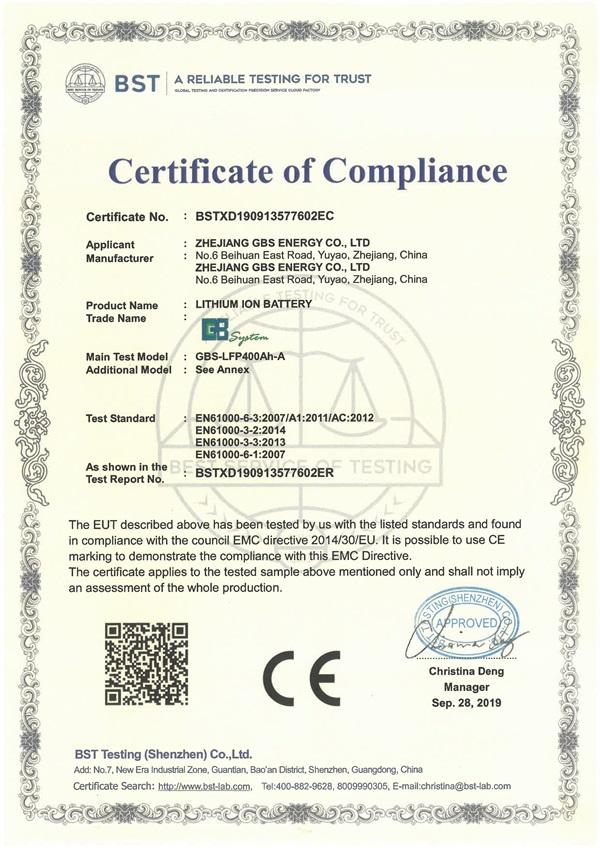

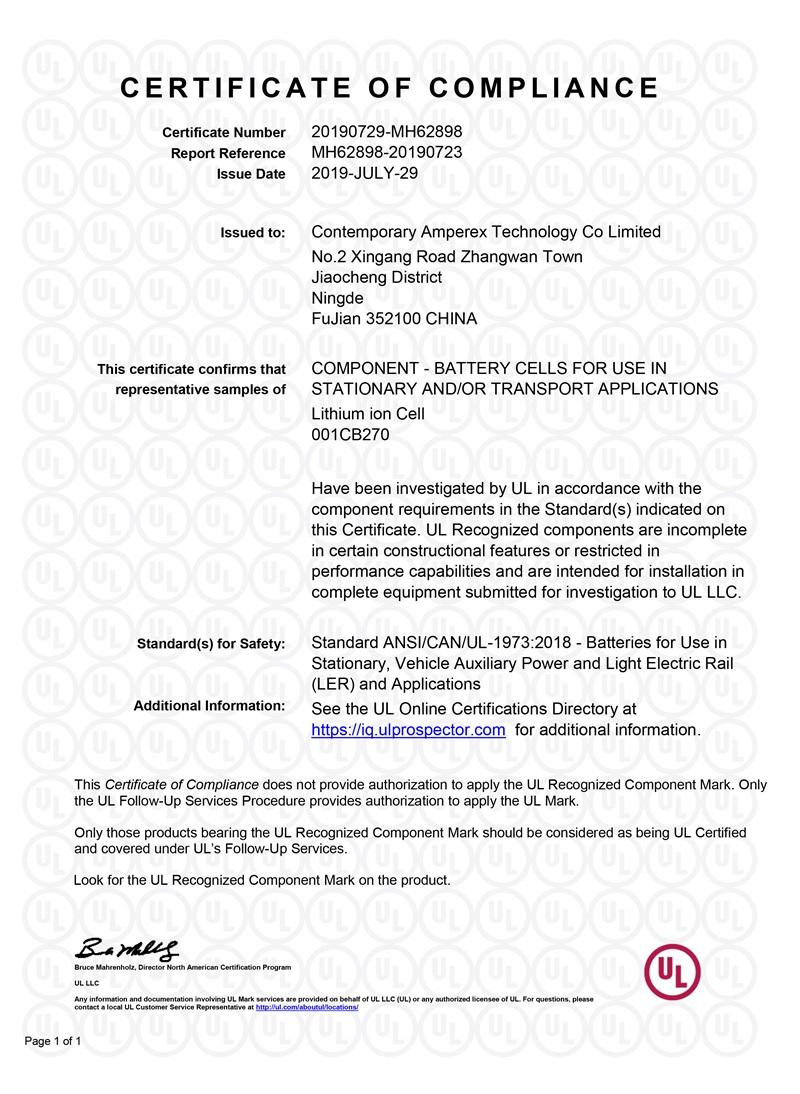

Certification
- 1. International regulatory certification, we have CE、ROHS、RECHAR、BIS、EPR、RCM、PSE、GOST、MIC...
- 2. In the product testing report, we have IEC62368、IEC62619、IEC62620、CB、GB、CCC、CCS...
- 3. In international transportation, we have UN38.3 (support sea, land and air transportation)、MSDS、UL、ATEX...
- 4. Special certificates: ESG、 ASPICE CL2、 ISO26262、 TISAX、Green Factory...
- 5. We support certification according to the needs of our customers to ensure product quality and safe transportation

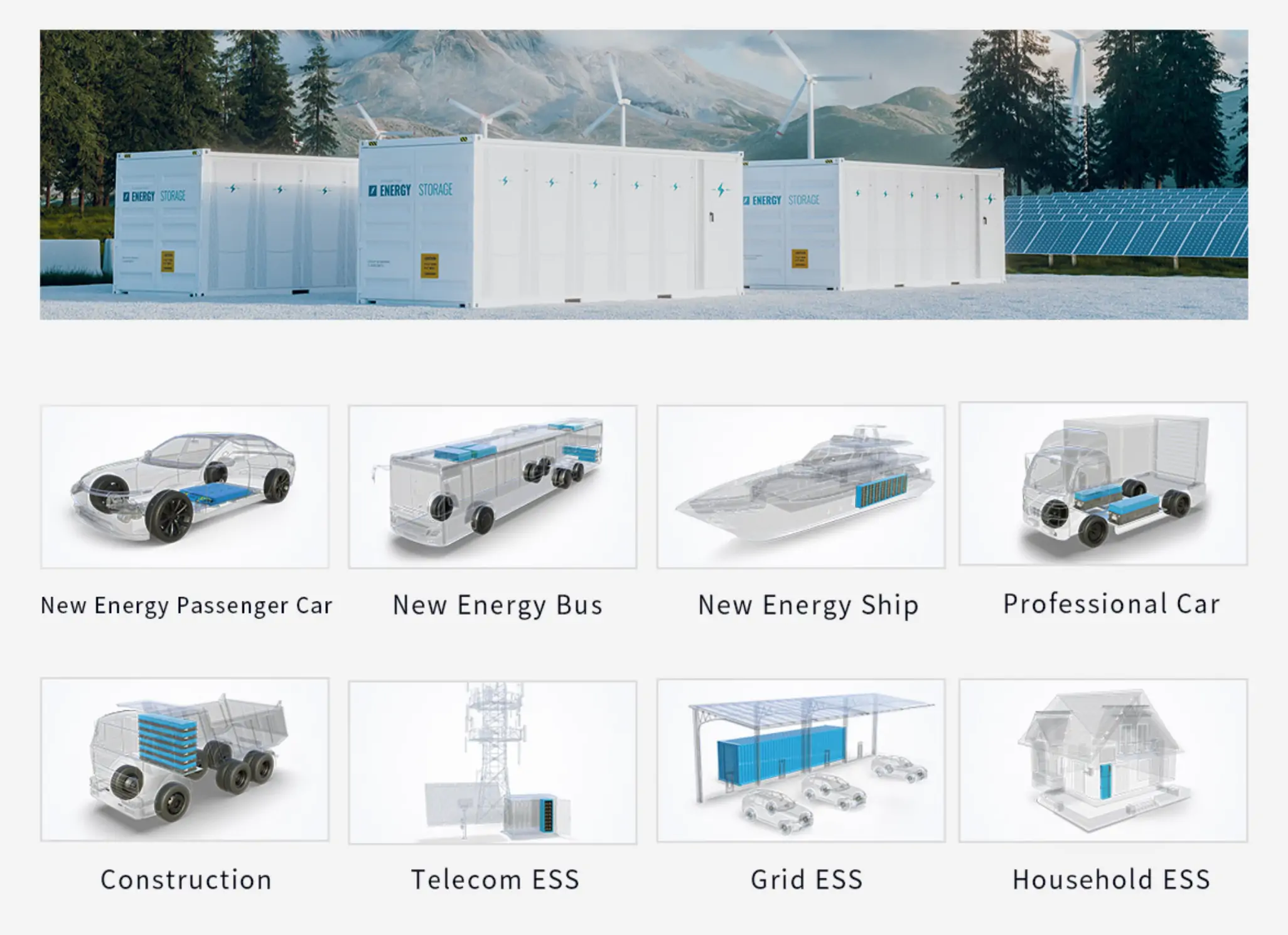

Applications
The Prismatic LFP Cell is widely used in the following scenarios.Please consult online customer service for specific models
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
