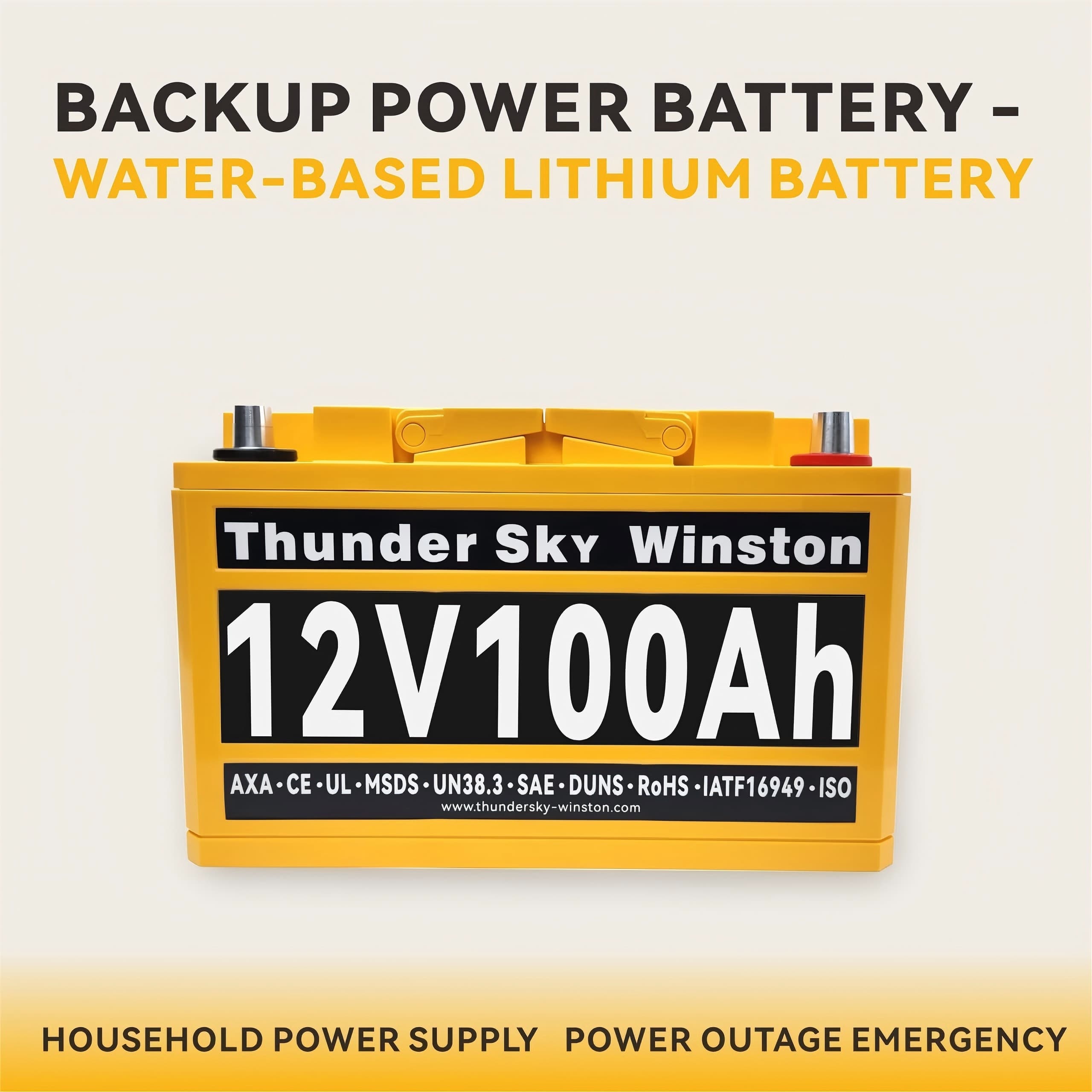

Winston Thundersky LiFeYPO4 12.8V 100Ah Battery

Product Details:

Place of Origin: China

Brand Name: Thunder Sky Winston Battery

Certification: CE

Model Number: TSWB-LP12V100AH

Payment & Shipping Terms:

Retail Price: /

Wholesale Price: Negotiable

Packaging Details: cartons or plywoods

Payment Terms: T/T

Contact Now

Nominal Capacity: 100Ah Nominal Voltage: 12.8V
Nominal Cycles: 11000 Cycles Charge/Discharge: 0.5C/0.5C
Dimension: 313 x 175 x 198 mm Battery Weight: 15.3kg

Product Description

The Best Alternative to Lead-Acid Batteries

Perfect Replacement for Lead-acid Batteries: winston battery 12V 100Ah Lithium Ion Phosphate Battery is the perfect choice for lead-acid battery conversion and upgrading, the weight of our battery is only 37.4lbs, they are smaller and lighter than ordinary lead-acid batteries, and the energy density has been increased by 3-5 times，and Not afraid of high temperature and cold, can be used in extreme temperatures (-45°C to 85°C）. LiFeYPO4 battery is the best choice for the new energy era with its more robust and stable performance!

Low-Temp Protection and BMS: Winston battery 12V 100Ah LiFeYPO4 Lithium Battery , and easily cope with all kinds of environments and situations at anytime, anywhere. Moreover, the Built-in BMS in -20 ~ 65 to better protect the battery,can prevent the battery from over-charging, over-discharging, over-current and short-circuit, and upgraded low-temperature cut-off function ensures safe use in low temperature and any environment.

The battery has an extremely long life and is suitable for starting batteries, Can be charge and discharge repeatedly over 7000 times at DOD 70%,life can reach up to more than 20 years. Self-discharge 1.5% is far below The industry standard. The most cost effective in all the lithium ion battery.

Green and Friendly: Through UL/CE/RoHS and other international safety and environmental protection certification, no heavy metal pollution, production, use, recycling are environmentally friendly, green energy preferred water-based adhesive instead of PVDF.

New design, all-round safety: the new plastic battery case, the lithium battery wear-resistant, waterproof shell, to ensure that all your activities can go smoothly. In order to prevent extrusion damage, we have optimized the internal layout and construction. The permissible operating temperature range for outdoor activities is -45°F to 85°F.

Product Features

· Winston Battery:the Safest Lithium Technology.Integrated Battery Management System(BMS).
· Long Cycle Life>11000cycles @60%DOD.
· High Density,High Discharge Current,High Temperature Range.
· Low Weight,Free Maintenance.
· Fast Charging.
· Environment Friendly.

The BMS monitors and controls the individual cell of a battery andprotects them from damage,suchas overload and overvoltage

Specification

Parameter	specification
Nominal Voltage	12.8V
Rated Capacity	100Ah
Energy	1408Wh
Resistance	≤2.7mΩ
Efficieny	99%
Cycle Life	>11000cycles @0.5C,60% DOD
Self Discharge	1.5% per Month
Dimension(L x W x H)	313 x 175 x 198 mm
Weight	15.3kg
Terminal Type	M8
Batte Case	Metal/ABS
IP Grade	IP65
Cell chemistry	LiFeYPO4
Discharge Temperature	-20 to 60℃ (-4to 140°F)
Charge Temperature	0 to 65℃ (32 to 145°F)
Storage Temperature	-20 to 60℃(-4to 140°F)
BMS High Temperature Cut-off	80℃(176°F)
Continuous Discharge Current	100A
Pulse Discharge Current	750A(<6 seconds)
Recommended Volt.Disconnect	10V
BMS Discharge Cut-off Voltage	9.2V
Short Circuit Protection	200~600 us
Charge Method	CC-CV
Charge Voltage	14.4±0.2V
Recommended Float Voltage	13.8V
Recommended Charge Current	50A
Maximum Charge Current	100A
BMS Charge Cut-off Voltage	14.8V
Certifications	UL
	CE
	IEC
	IATF16949
	BIS
Shipping Classification	UN3480,Class 9,UN38.3

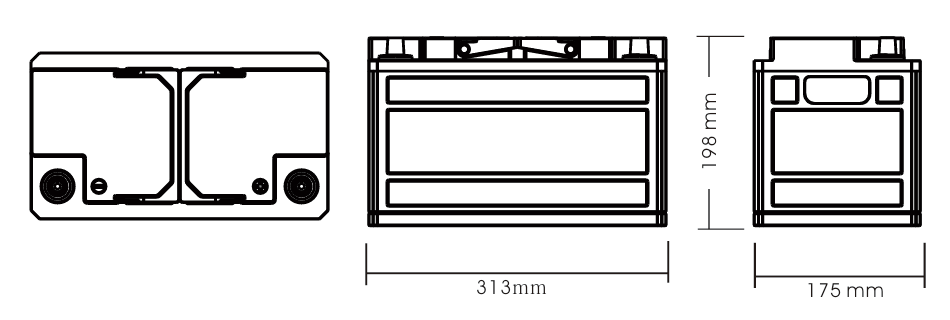

Dimension and Details

dimension of Thunder Sky Winston Battery 12.8V 100Ah LiFeYPO4 Battery

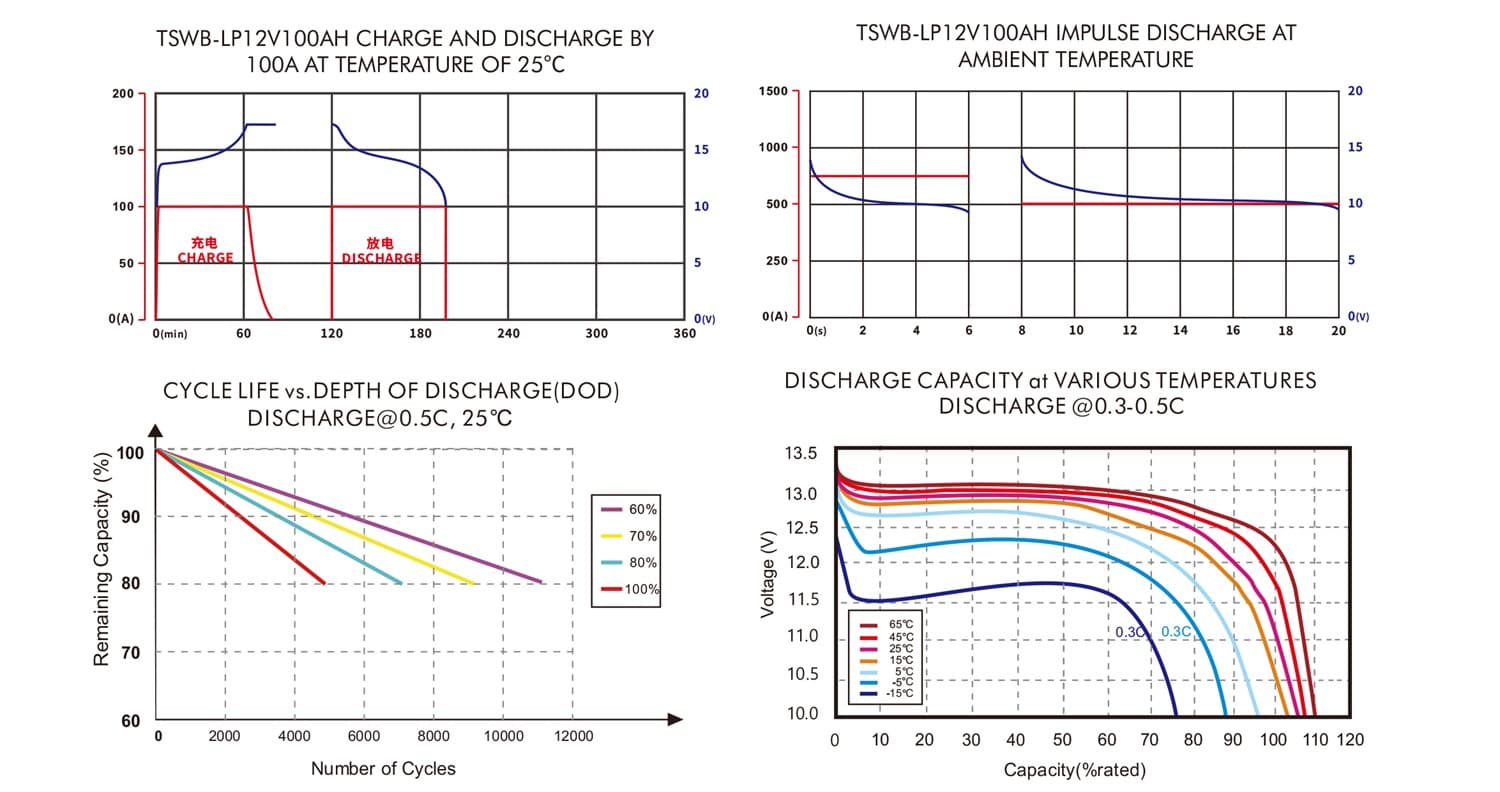

Performance Characteristics

12V 100Ah lifepo4 battery pack performance charateristics

Battery Applications

· Data Center UPS
· Telecom Backup Power
· Car starting power supply
· Solar Energy Storage System
· Floor Cleaning Machines
· Electric Mobilities(E-scooters,Wheelchair)
· Golf Trolley &Golf Carts
· Electric Ships

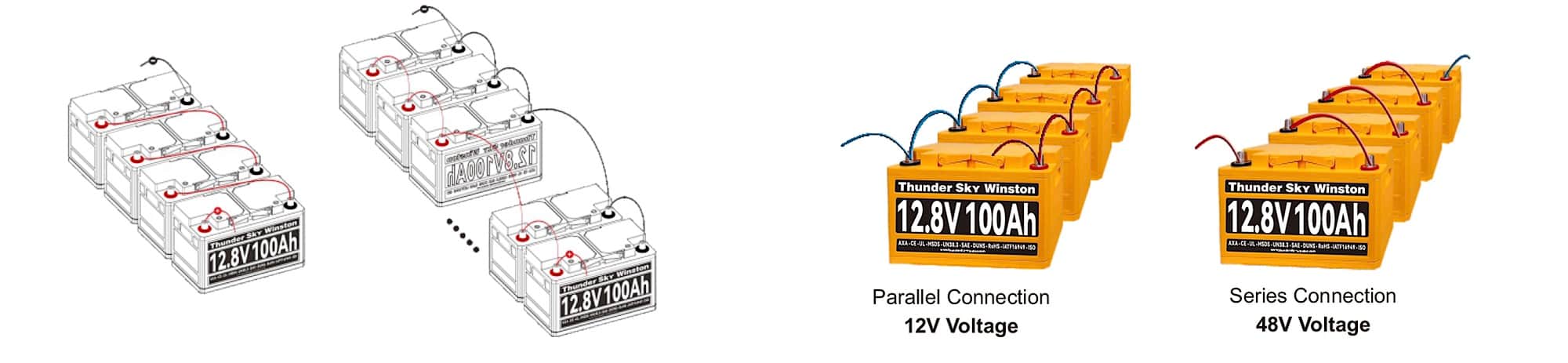

Series or parallel connection

up to 4 batteries can be connected in series or parallel to make a 48v battery pack

Certification

In-Stock in USA, Ready to Ship!

We currently have a large inventory of 12V 100Ah Winston LiFeYPO4 Battery Packs in stock across the USA, ensuring fast delivery and seamless fulfillment.
