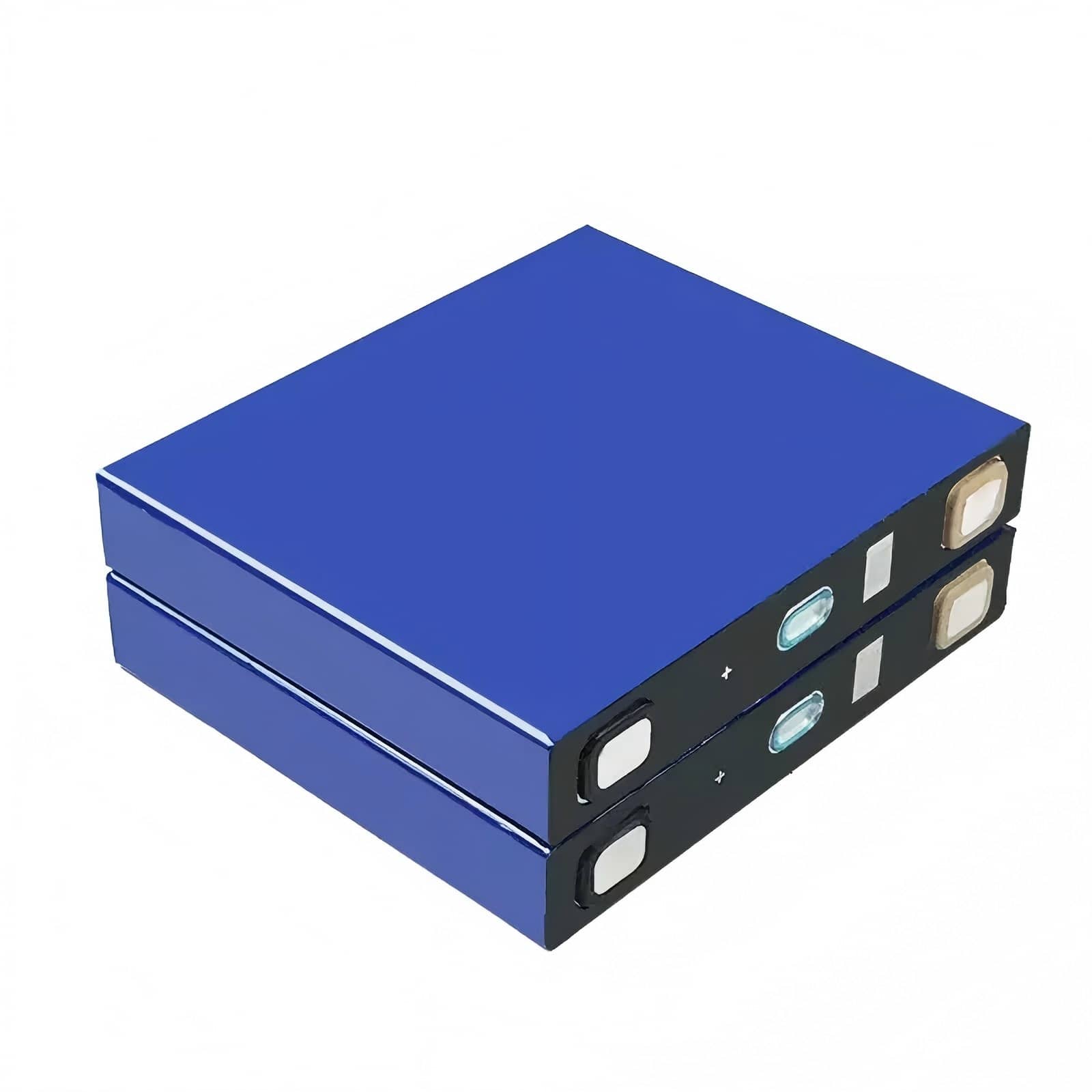

Lishen LP33200173-125Ah 3.2V LiFePO4 Power Battery Cell
Product Details:
Place of Origin: China
Brand Name: Lishen
Certification: CE
Model Number: LP33200173-125Ah
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 125Ah Nominal Voltage: 3.2V
- Nominal Cycles: 3000cycles Charge/Discharge: 1C/1C
- Dimension: 173*33.2*200mm Battery Weight: 2450±100g
Product Description
100% Brand New Grade-A Lishen LP33200173-125Ah 3.2V LiFePO4 Power Battery Cell Featuring high specific energy, superior safety, long service life, and ultra-fast charging capabilities. Ideal for logistics vehicles, sanitation vehicles, forklifts, mobility scooters for the elderly, tourist shuttles, golf carts, and more.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Product Features
- Light Weight Trend: Using high-strength steel and lightweight aluminum structure, aluminum magnesium alloy materials and low density thermal conductive adhesives
- High Reliability: Self-developed BMS mounted, highly efficient and safe monitoring and early warning system
- Warranty Upgrading: Acquisition of full-time equalization technology and lattice MAP technology maintains cell consistency and extends system warranty
- Super Quick Charge: Meet 1 C quick charge capacity under normal temperature
- Low Cost: Few types of materials are used thanks to high integration design
Specification
| Item | Specification |
|---|---|
| Cell Type | Lithium-ion power cell |
| Cell Model | LP33200173-125Ah |
| Nominal Capacity | 125Ah (The NEW BATTERY) |
| Nominal Voltage | 3.2V |
| AC-impedance(1000Hz) | ≤0.5mΩ |
| Maximum Charge Current at Room Temperature | 1C（Continuous）2C (60s) |
| Charging Voltage | 3.65V |
| Maximum Discharge Current at Room Temperature | 1C（Continuous）3C (60s) |
| Discharge End Voltage | 2.5V（＞0℃）、2.0V(≤0℃) |
| Max Operating Temperature Range | Charge: 0℃ ~ 60℃ |
| Discharge: -30℃ ~ 60℃ | |
| Optimal Operating Temperature Range | Charge: 15℃ ~ 35℃ |
| Discharge: 15℃ ~ 35℃ | |
| Storage Temperature | 1 month: -40℃~ 45℃ |
| 6 months: -20℃ ~ 35°C | |
| Cycle life | 3000cycles @80%DOD |
| Dimension | 173*33.2*200mm |
| Weight | 2450±100g |
Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
