Everything You Need to Know About Cylindrical Lithium Batteries

Part 1: Characteristics of Cylindrical Batteries

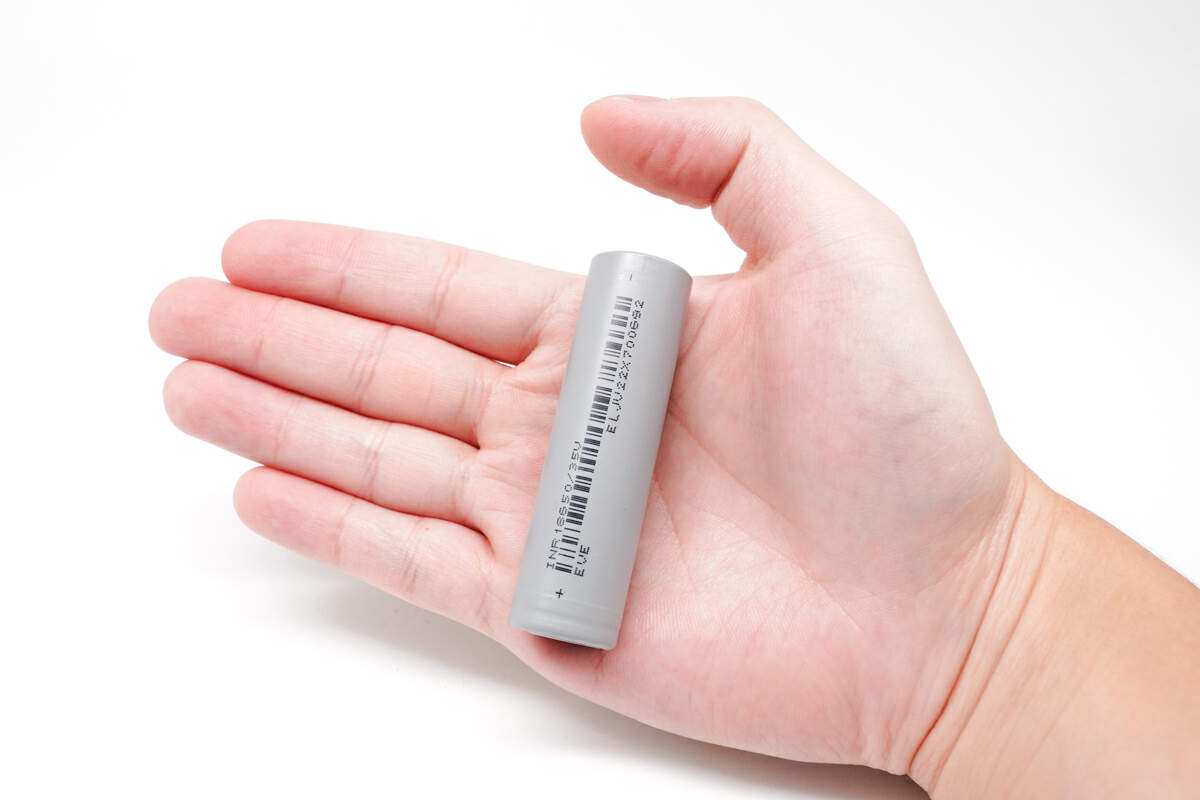

1. Appearance of Cylindrical Lithium Batteries

Cylindrical lithium batteries typically consist of several key components: a positive electrode (often nickel-cobalt oxide or zinc manganate), a separator paper, and an electrolyte. The casing, which is made from aluminum-plastic composite material, ensures both protection and structural integrity. The most common shape is a cylinder, hence the name, which allows for compact storage and efficient energy delivery.

2. Cylindrical Battery Capacity

The energy density of cylindrical lithium batteries generally ranges between 300 Wh/kg and 500 Wh/kg, depending on the specific model and design. With a specific power that can exceed 100W, these batteries are ideal for applications that require high power output and compact size.

3. Safety and Reliability

Cylindrical lithium batteries are recognized for their high safety standards. They are designed to resist overcharging, withstand high temperatures, and offer a long service life. These features make them suitable for both consumer electronics and industrial applications, where safety is a top priority.

4. Applications of Cylindrical Lithium Batteries

These batteries are widely used in consumer devices like digital cameras, laptops, and power tools, as well as in electric vehicles (EVs), energy storage systems, and backup power supplies. Their versatility and reliability have made them the battery of choice for a variety of industries.

Part 2: Structure of Cylindrical Batteries

A cylindrical lithium battery is composed of several essential parts:

• Casing: The battery's outer shell, typically made of nickel-plated steel, serves as the negative electrode.
• Cap: This is the positive electrode.
• Electrode: The positive and negative electrodes contain the active materials (like lithium cobalt oxide, graphite, etc.) that store and release energy.
• Separator: A thin membrane that prevents direct contact between the positive and negative electrodes while allowing ionic flow.
• Electrolyte: A liquid or gel substance that facilitates ion movement between the electrodes.

Power cylindrical batteries differ from standard cylindrical batteries due to their high-current structures, designed to accommodate the larger current demands typically required by EVs and high-power systems.

Part 3: 7 Common Types of Cylindrical Batteries

Cylindrical lithium batteries come in various sizes and specifications, identified by a five-digit code that refers to the battery's dimensions. Here are some of the most commonly used types:

1. 10440 Battery

Dimensions: 10mm (diameter) x 44mm (height)
Common Uses: Small electronic devices like flashlights and mini speakers
Capacity: Typically low, around 100-300mAh

2. 14500 Battery

Dimensions: 14mm x 50mm
Common Uses: Consumer electronics like toys and small gadgets
Capacity: Around 600-800mAh

3. 16340 Battery

Dimensions: 16mm x 34mm
Common Uses: Flashlights, LED lights, lasers
Capacity: Typically 700mAh

4. 18650 Battery

Dimensions: 18mm x 65mm
Common Uses: Laptops, power tools, electric vehicles
Capacity: 1000-3500mAh (varies by model)

5. 21700 Battery

Dimensions: 21mm x 70mm
Common Uses: EVs, solar streetlights, power tools
Capacity: 4000mAh to 5000mAh

6. 26650 Battery

Dimensions: 26mm x 65mm
Common Uses: Power storage systems, high-performance flashlights
Capacity: 3000-3400mAh

7. 32650 Battery

Dimensions: 32mm x 65mm
Common Uses: Backup power, wind power generation systems
Capacity: Typically 6000mAh

Part 4: Cylindrical Battery Voltage, Capacity, Charger, and PCB

1. Rated Voltage

Common voltages for cylindrical lithium cells are 3.7V or 3.2V depending on the material used.

2. Battery Capacity

Each cylindrical battery type has different capacity ratings. For example:

• 10440: 320mAh
• 18650: 1000mAh to 3500mAh
• 26650: 3000mAh to 3400mAh

The capacity determines how long the battery can power a device before requiring a recharge.

3. Cylindrical Battery Charger

Chargers are designed to handle specific battery pack configurations. It’s essential to match the charger to the battery’s voltage and capacity to ensure safe and efficient charging.

4. PCB (Protection Circuit Board)

Many cylindrical batteries come equipped with a PCB that provides protection against overcharging, overdischarge, short circuits, and overheating, ensuring battery longevity and user safety.

Part 5: Pros and Cons of Cylindrical Lithium Batteries

Advantages

• Mature Production Process: Cylindrical batteries are mass-produced with high efficiency, low cost, and excellent heat dissipation.
• High Safety and Stability: Their robust design and high-quality materials provide reliable performance even under harsh conditions.
• Standardization: International standards for cylindrical battery sizes make them versatile and easy to source.
• Long Lifespan: These batteries are designed for long-term use, with high cycle life and low maintenance.

Disadvantages

• Larger Size: Cylindrical batteries tend to be bulkier compared to other battery shapes, which may not be ideal for ultra-compact devices.
• Lower Energy Density per Unit: While they are efficient, cylindrical batteries have a lower energy density compared to newer technologies like pouch cells.
• Limited Compatibility: Due to their size and shape, cylindrical batteries might not always fit in devices designed for other types of batteries.

Part 6: FAQ

Q: Are cylindrical lithium batteries environmentally friendly?

Yes, cylindrical lithium batteries are considered environmentally friendly due to their long life cycle and the potential for recycling at the end of life.

Q: What should I consider when choosing a cylindrical battery for my device?

Key factors include voltage, capacity, and the application’s power requirements. Be sure to check the specifications for compatibility with your device.

Q: Can cylindrical batteries be used in electric vehicles (EVs)?

Yes, cylindrical batteries are commonly used in electric vehicles due to their reliability, high capacity, and cost-effectiveness.
